Coating

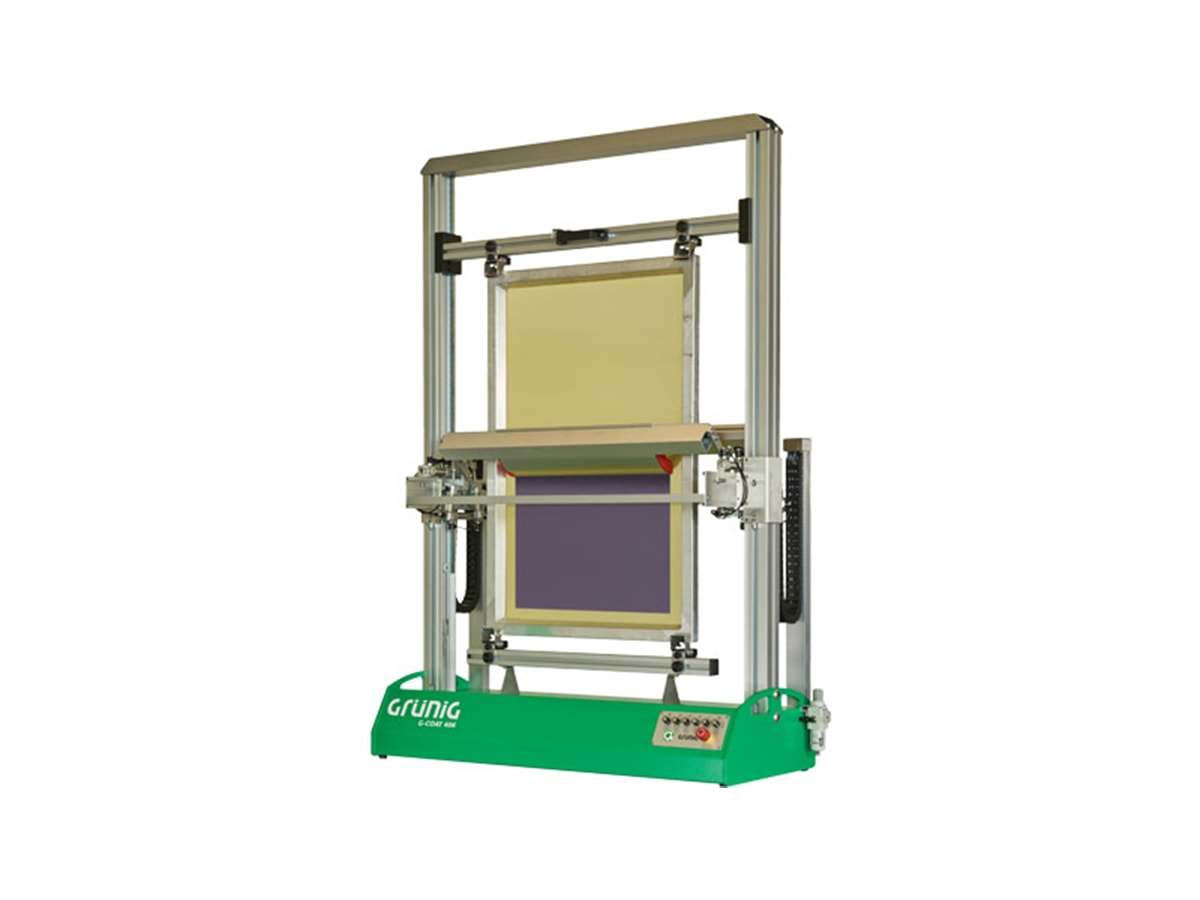

G-COAT 406

Tabletop unit for single- or double-sided coating with high precision and flexible application.










1 / 10

Description

The machine is available in two sizes, for screens up to 700 x 1000 mm or 1000 x 1400 mm (25 x 39 or 39 x 55 inch)
“PLUG & COAT” construction: unpack, set up, coat
Top quality – low price

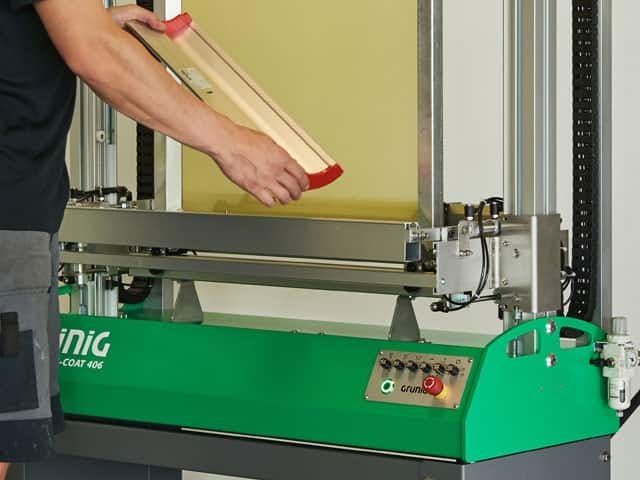

This machine provides for one-sided or double sided simultaneous screen coating.

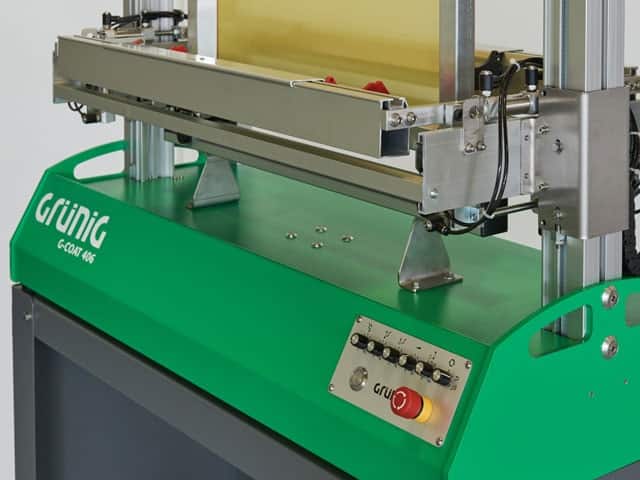

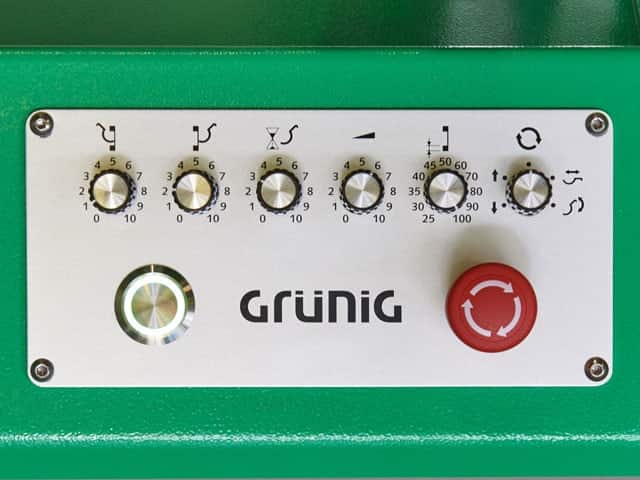

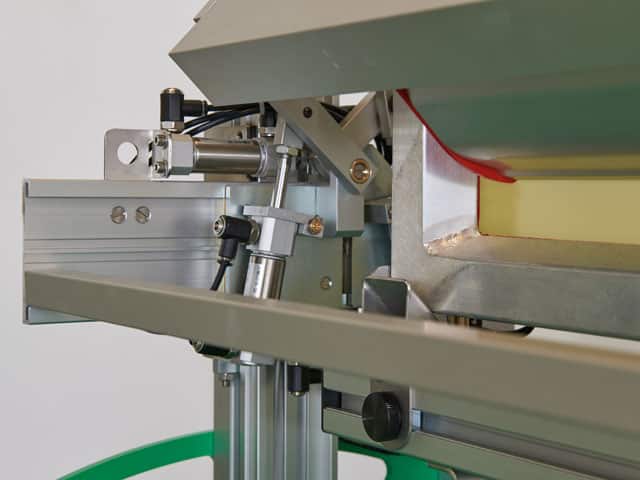

To optimize the coating surface, the frame profile height can be adjusted within a range of 25 and 100 mm via a rotary knob on the control panel.
Safe reproducibility +/-1 micron
The machine has been constructed as a bench-top model; it can be operated on any work surface that offers sufficient stability.

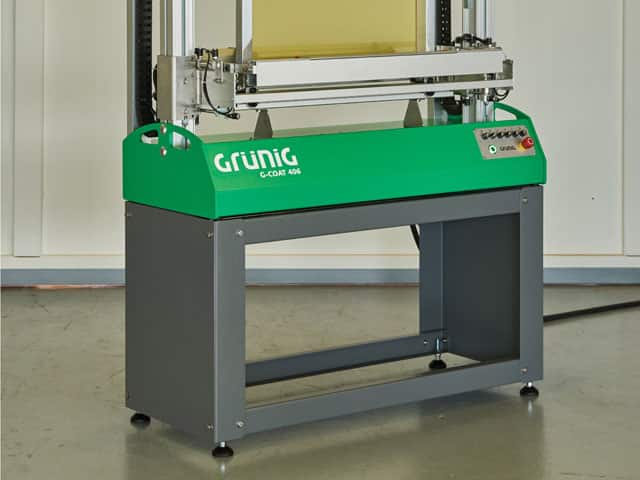

To make sure that the machine can also be set up on the floor, an easy-to-mount sub-construction is available as an option.
Patented coating trough G-COAT 401 included
