Fluid & Washing Technology

Reliable screen management

Liquid-based processes accompany the screen mesh through all stages – from pre-treatment and developing to full reclamation. Automated control ensures residue-free surfaces and precise screen definition. This guarantees maximum emulsion adhesion and full reusability of the screen.

Functional preparation & developing
Optimize emulsion adhesion through controlled degreasing and ensure finest image details with precise washout after exposure. Our technology guarantees sharp edges without manual risk.
Gentle total cleaning
Remove ink residues and screen layers in a single process without damaging the mesh. Precise chemical dosing eliminates even the most persistent ghost images while fully maintaining mesh stretching.
Efficient resource cycle
Protect the environment with integrated filtration and reclaim systems. The closed-loop process minimizes water and chemical consumption while reducing wastewater impact.

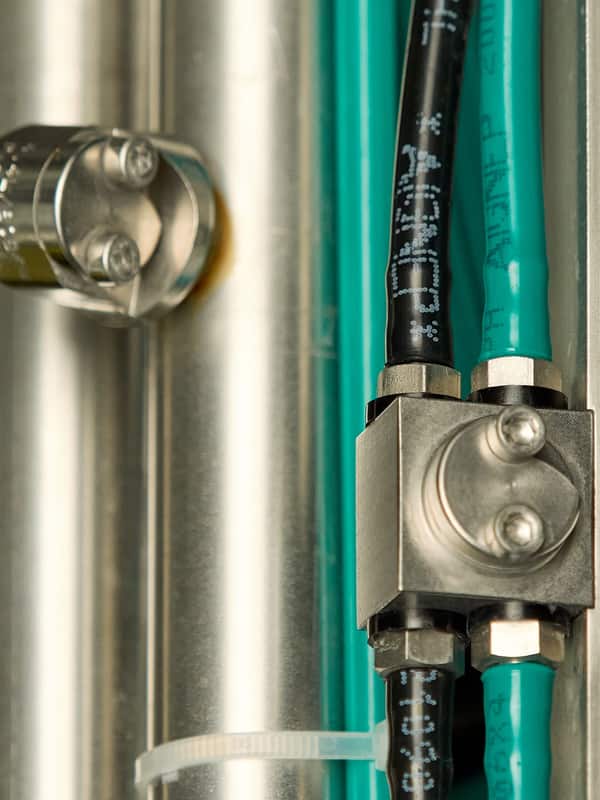

Washing nozzles cleaning a screen with controlled spray pressure

Maximum cleanliness for reproducible screen results.

Clean mesh is not a coincidence, but the result of controlled chemistry.

Where manual cleaning reaches its limits, automation ensures the long-term value of your screens. By precisely balancing spray pressure and chemical exposure time, even the most stubborn residues are removed without affecting the sensitive mesh structure. The result is a chemically neutral screen, ready for the highest demands.

Optimal wetting

Controlled degreasing adjusts surface stretching to ensure perfect emulsion adhesion without coating defects.

Mechanical protection

Defined pressure parameters prevent loss of mesh stretching and significantly extend screen lifetime.

Consistent cycle times

Standardized washing cycles ensure predictable production times and operator-independent cleaning quality.

Process Steps

From contaminated screen to neutral surface

An efficient workflow ensures quality and longevity of your screens.

1. Requirement analysis & program selection
Depending on ink system and contamination level, the ideal cleaning program is selected to precisely match chemistry and time to the application.
2. Intelligent spray technology
Our specially developed V2A stainless steel nozzles ensure complete coverage. The unique service cap allows direct maintenance on the spray pipe without stressing the thread through disassembly.
3. Intensive cleaning & decoating
Under controlled pressure, emulsions and particles are removed deep into the mesh. The chemical-resistant nozzle design prevents spray distortion caused by clogging, ensuring ghost-free results.
4. Ecological fluid treatment
Used water and chemicals are filtered directly within the system and returned to the process cycle. This conserves resources and minimizes disposal effort.

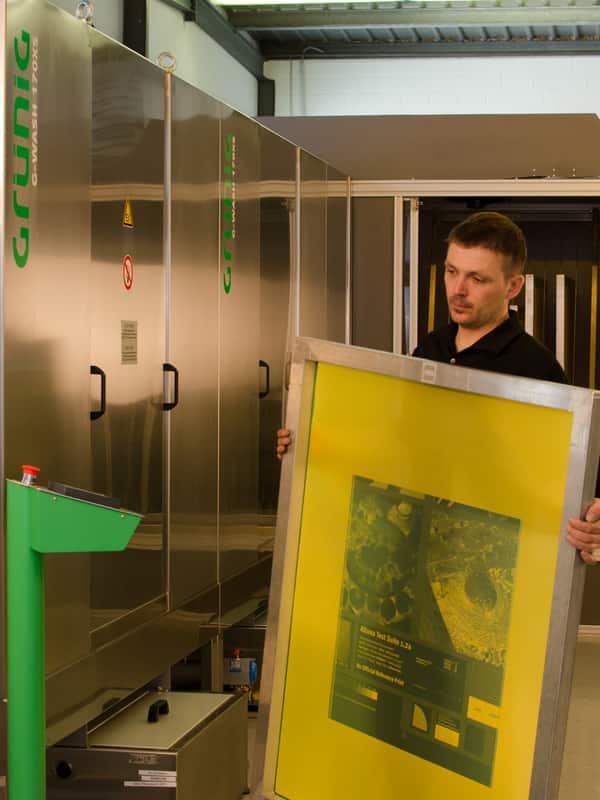

G-WASH process system for automated screen reclaim and washing
Portfolio

Washing systems at a glance

From compact stand-alone units to modular IN-LINE systems

View product: G-WASH 104 – PLUG & WASH

G-WASH 104 – PLUG & WASH

Compact front-loading washing unit with closed-loop system, smartphone programming and over 100 program slots.

View product

View product: G-WASH 106 – Developing

G-WASH 106 – Developing

Developing unit with touchscreen, adjustable washing pressure and optional fresh or recirculated water operation.

View product

View product: G-WASH 112 – Decoating

G-WASH 112 – Decoating

High-performance decoating system with electronically controlled pressure and fully programmable processes.

View product

View product: G-WASH 125 – Large format

G-WASH 125 – Large format

Open washing system for formats up to 4000 × 10000 mm, modularly expandable for multiple process steps.

View product

View product: G-WASH 130 – Modular IN-LINE system

G-WASH 130 – Modular IN-LINE system

Flexible conveyor system for smaller formats with washing, rinsing, decoating and drying modules.

View product

View product: G-WASH 150 – Rotary cylinders

G-WASH 150 – Rotary cylinders

Automatic IN-LINE washing system for cylinders up to Ø280 × 650 mm with closed chambers and minimal chemical carry-over.

View product

View product: G-WASH 170 XM – Modular large-format IN-LINE

G-WASH 170 XM – Modular large-format IN-LINE

High-performance system for formats up to 3 × 6 m with closed chambers, high process reliability and modular handling.

View product

View product: G-WASH 170 XS – Compact IN-LINE system

G-WASH 170 XS – Compact IN-LINE system

Closed conveyor system for medium formats with low chemical carry-over and reduced operating costs.

View product

View product: G-WASH 170 XS-DUO – Dual throughput concept

G-WASH 170 XS-DUO – Dual throughput concept

Two parallel washing lines in one system for maximum productivity with compact screen formats.

View product

Consulting & Contact

Optimize your washing process

Efficient, safe and perfectly tailored to your requirements.

Whether stand-alone or IN-LINE system – we support you in selecting the right G-WASH solution. Together, we optimize throughput, cleaning quality and operating costs across your entire process.

Request consultation
