Inline AutomationWashing

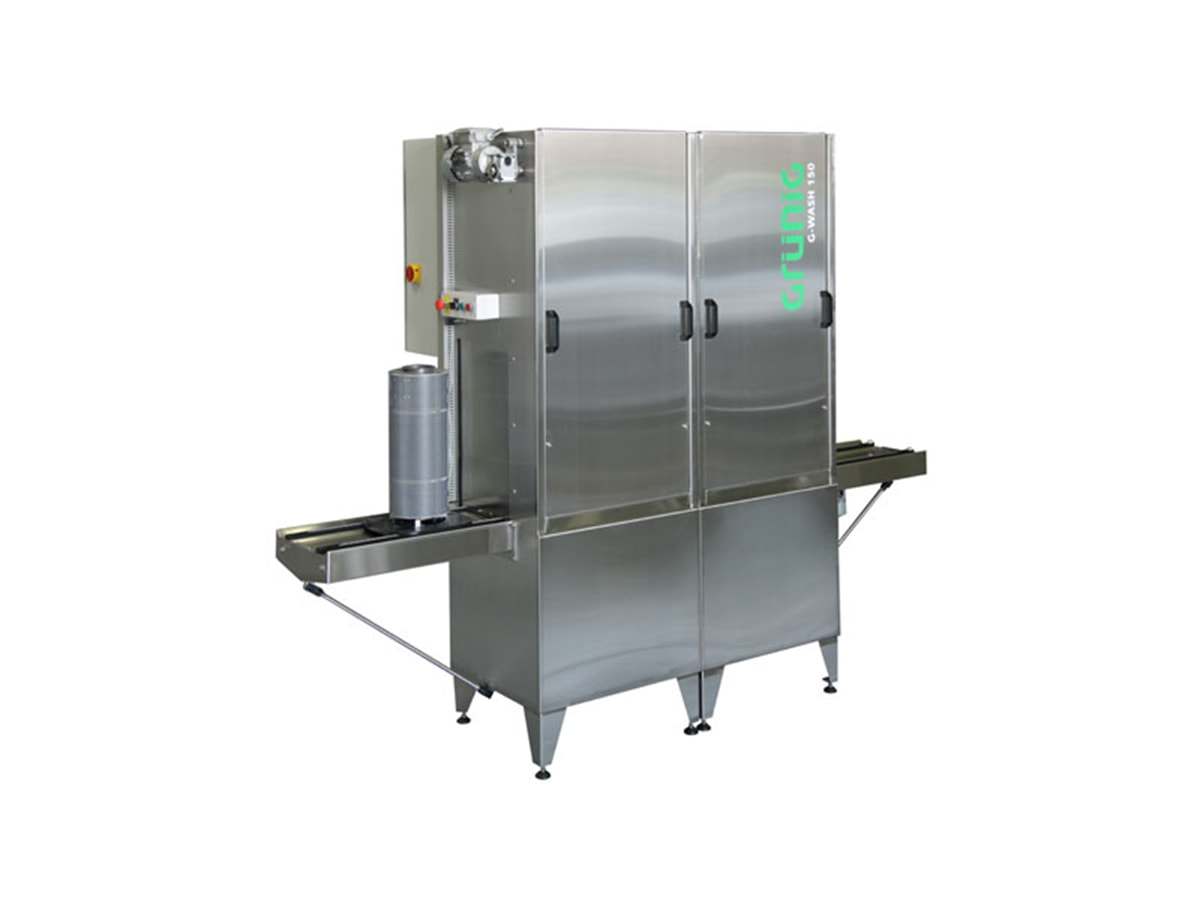

G-WASH 150

Name: G-WASH 150
Brand: Grünig-SignTronic

Automatic IN-LINE washing system for cylinders up to Ø280 × 650 mm with closed chambers and minimal chemical carry-over.








1 / 8

Description

Automatic through-put washing system for rotation cylinders
Max. cylinder format ø280 x 650 mm / ø11 x 25.5 inch
The modular construction ensures highest flexibility
Preliminary and subsequent cleaning in separate chambers
The integrated air blower system ensures minimal loss of chemicals
Designed for chemicals of the latest generation (flash point >55°C / 131°F, ATEX-compliant construction method)

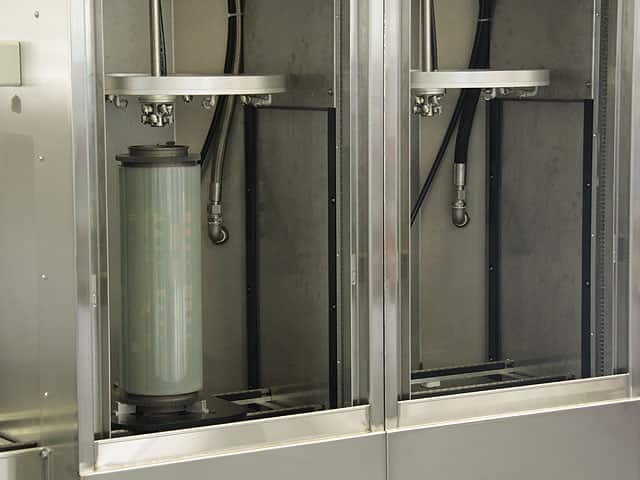

Completely closed washing chambers made of stainless steel V2A
No leakage of solvent vapors during the washing process

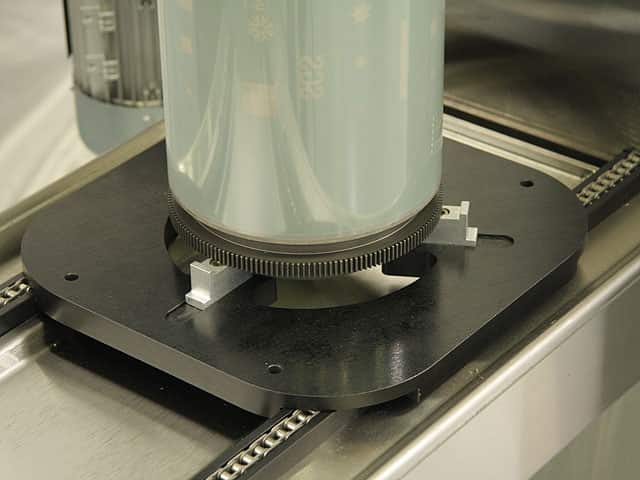

IN-LINE throughput installation, synchronized cylinder transport
Programmable washing process

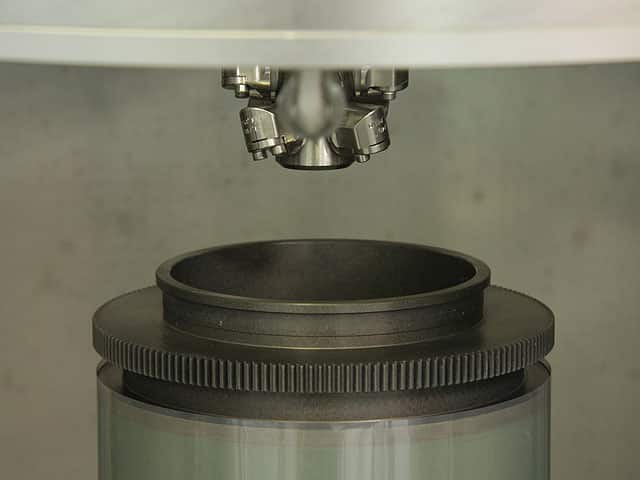

All the washing processes carried out with special Grünig nozzles for maximum ease of maintenance and reliable performance
