Inline AutomationWashing

G-WASH 130

Name: G-WASH 130
Brand: Grünig-SignTronic

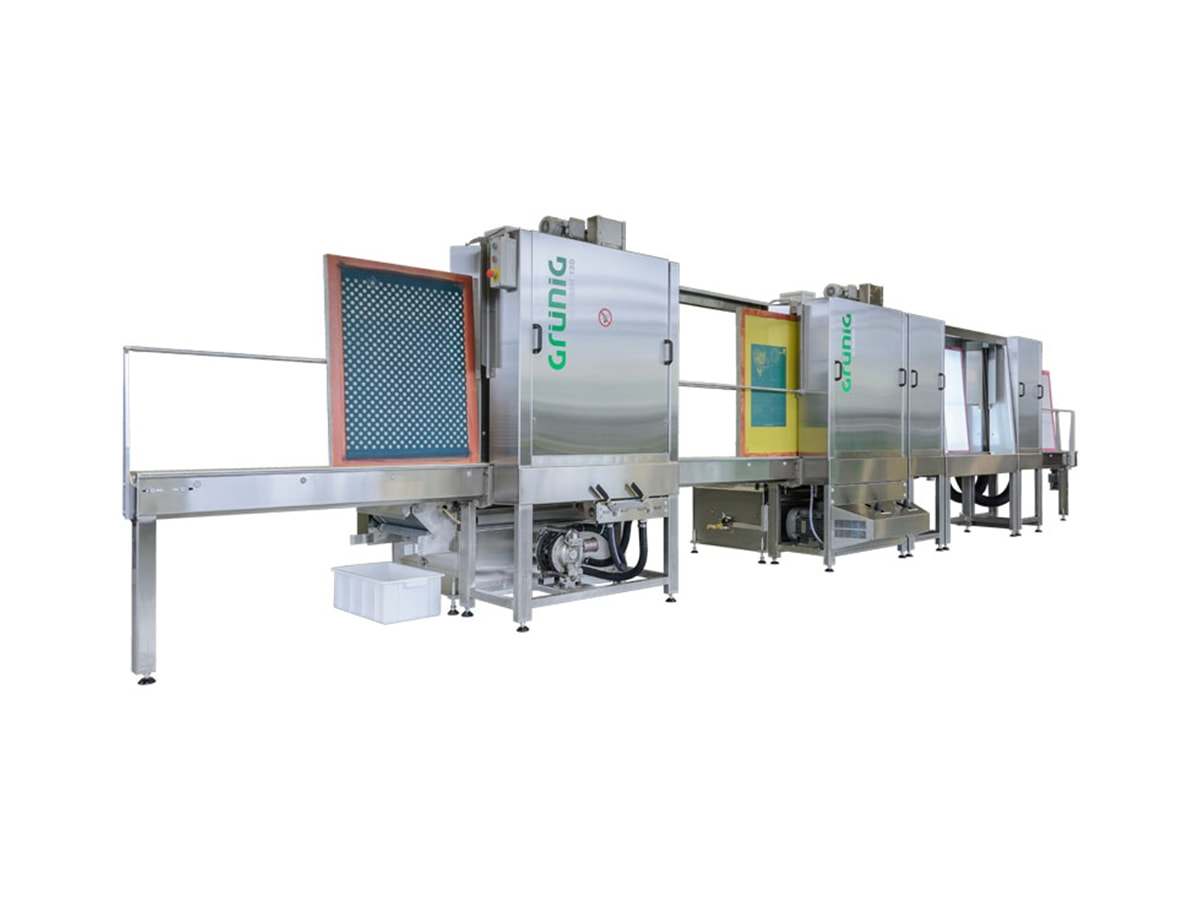

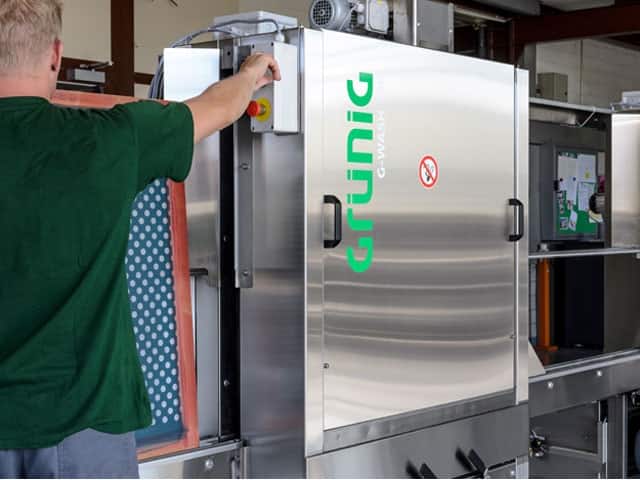

Flexible conveyor system for smaller formats with washing, rinsing, decoating and drying modules.














1 / 13

Description

Washing, de-coating, developing
For screen formats of up to 1 x 1.2m
High degree of flexibility thanks to the modular construction
Existing installations can be upgraded anytime by adding supplementary modules
The process flow direction can be selected according to the requirements
Excellent accessibility – for maximum ease of cleaning
Top-quality chromium steel construction
Innovative nozzle system

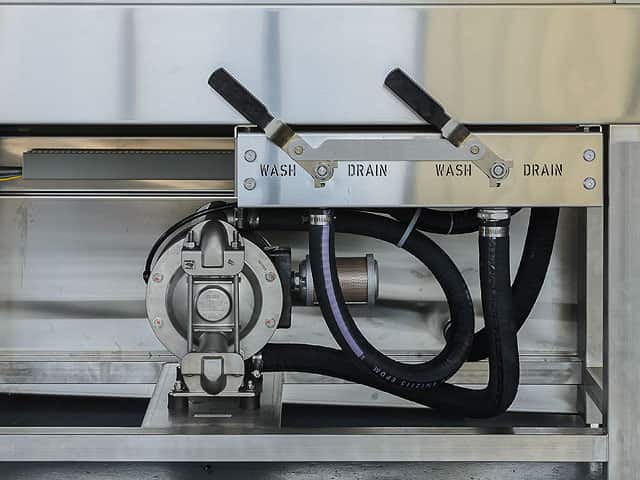

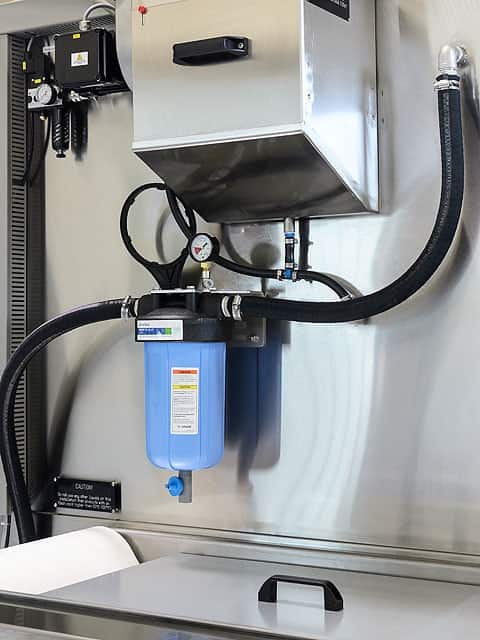

Water-saving closed circuit system with coarse filter and bag filter

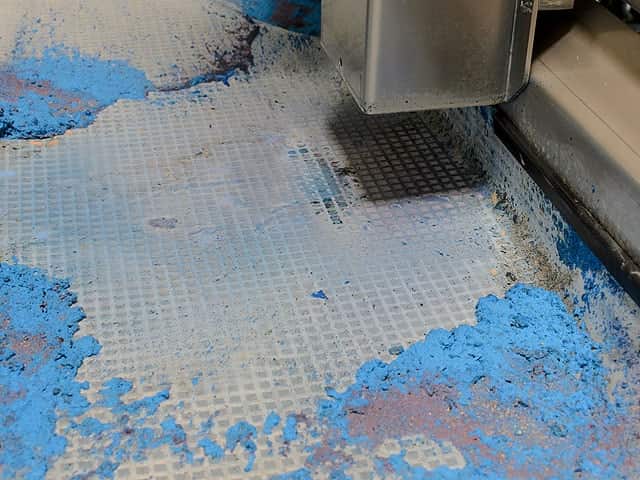

Expansible with inclined filtering and exhaust air system
Designed for cleaning agents of the latest generation (flash point >55°C, ATEX conform construction type)
Uncomplicated tank cleaning thanks to the stand-alone and easily accessible construction type
Clean water rinsing module for preliminary moistening, intermediate and final rinsing of the screens
In-line hand wash basin offers the possibility of final checking and retouching work
The air blower module prevents lime residues in the fabric meshes and allows unloading the screens without any carryover of water
High screen output

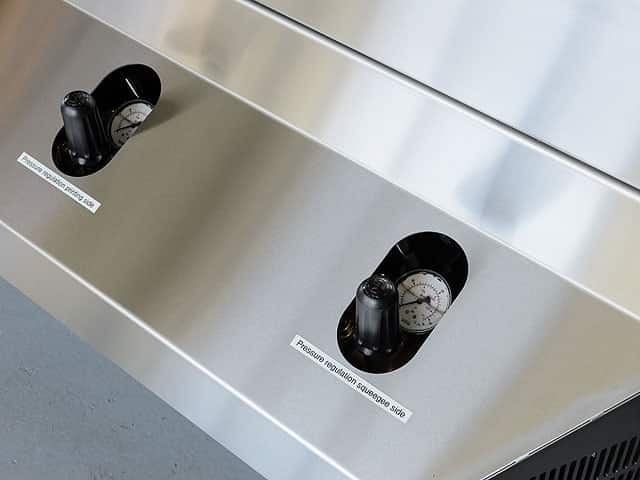

Special Grünig nozzles made of V2A with service cover, designed for maximum ease of cleaning

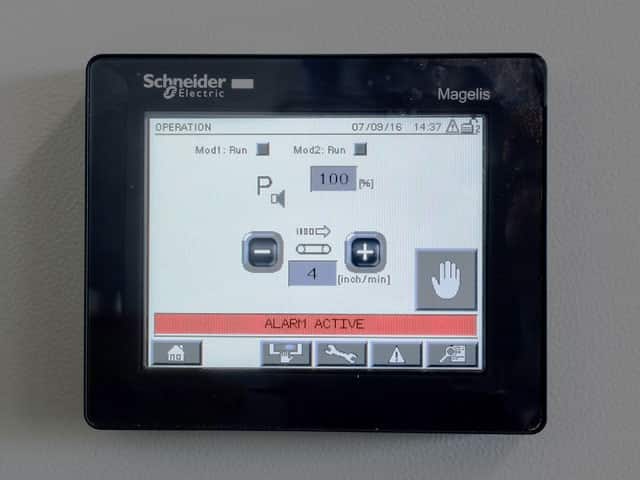

Open programming of all the parameters by means of a touch screen terminal
