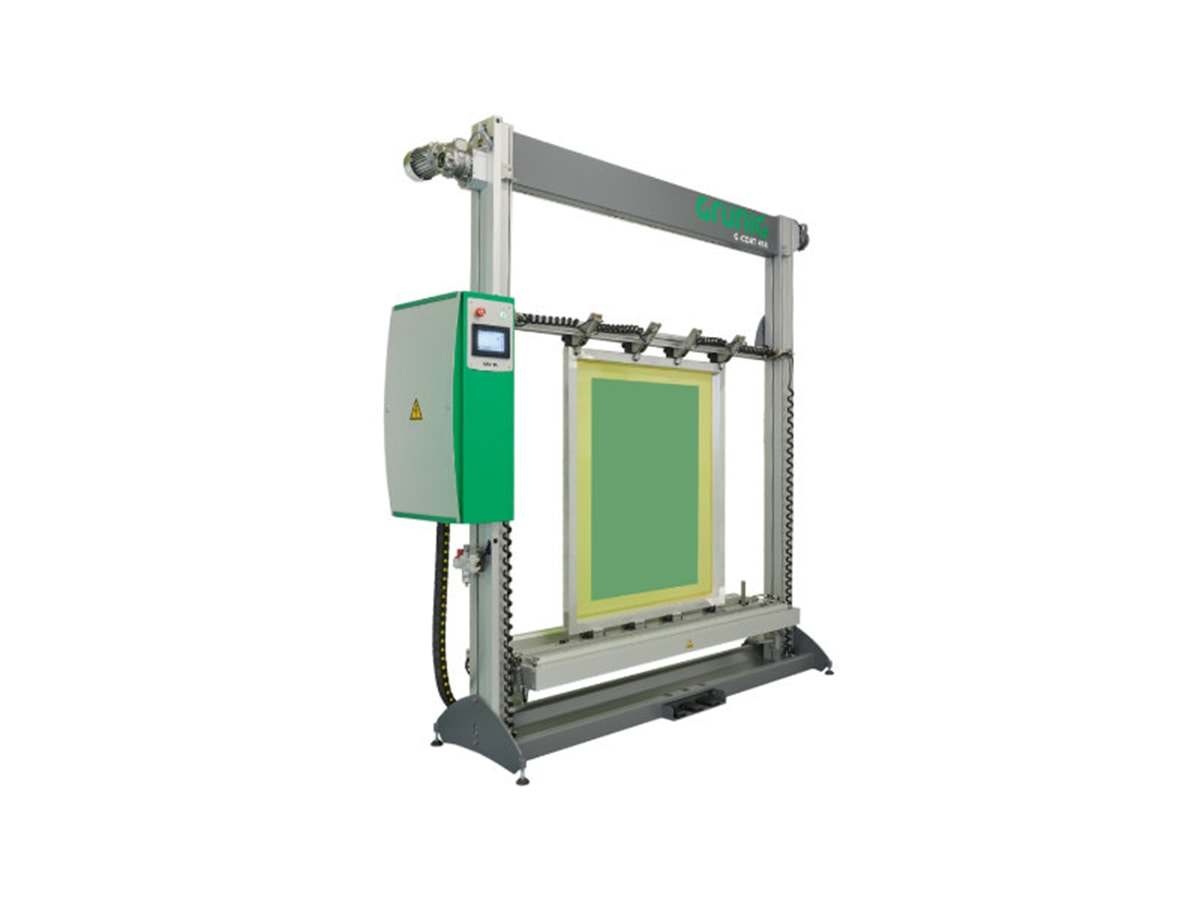

G-COAT 414

Individually controlled system with touchscreen and freely programmable coating processes.










1 / 10

Description

The machine is available for screen sizes between 1000 x 1200 mm and 2000 x 2000 mm.
For smaller sizes: available as a PLUG & COAT system: unwrap – set up – coat
Solid lightweight construction
Uncomplicated operating concept

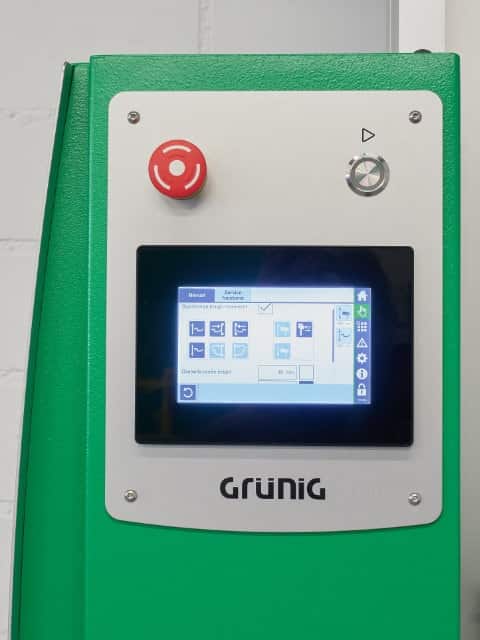

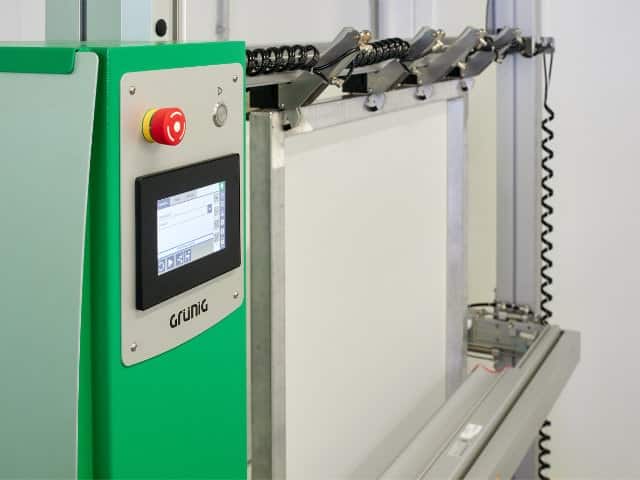

Input of the coating parameters via Touch-Screen Terminal
Freely programmable number of programs
Thanks to the individually controlled coating troughs, the screens can be coated on the squeegee; on the print, or simultaneously on both sides.
High degree of reproducibility of the coating results

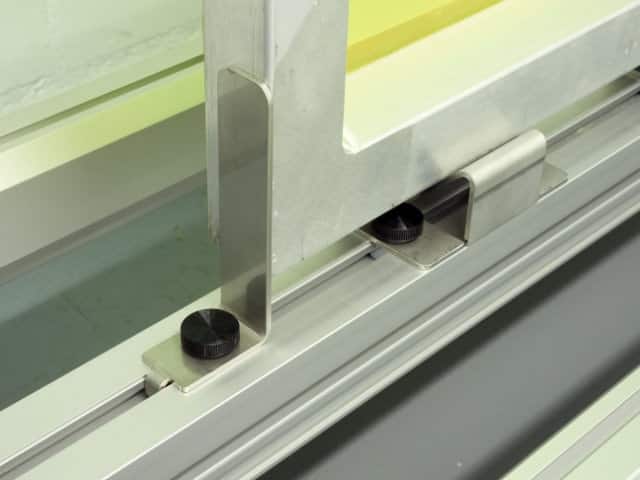

Due to the adjustable frame profile height, an optimal utilization of the coating surface is possible

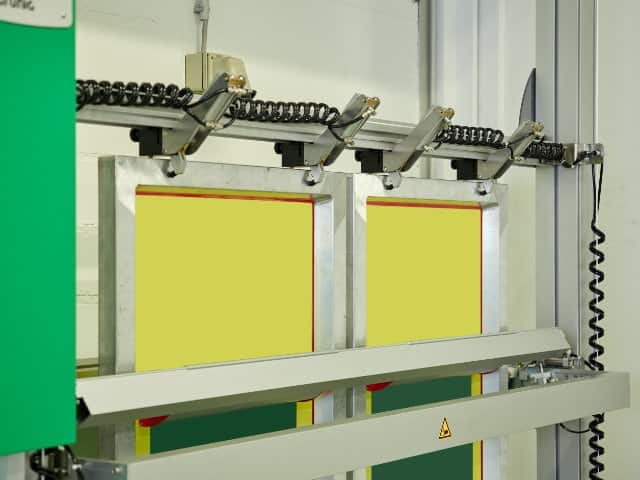

Uncomplicated adaptation to the screen format thanks to the motor-driven screen tie-bar.

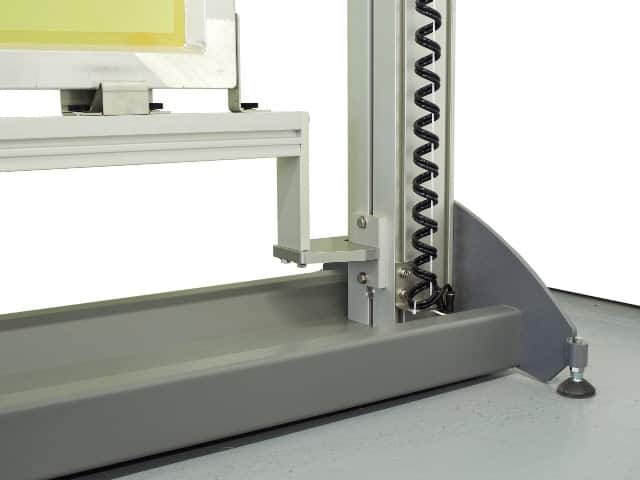

The height of the screen support can be individually adjusted in order to guarantee ergonomic working even when handling small screens.
Patented coating trough G-COAT 401 included
