CtS Exposure

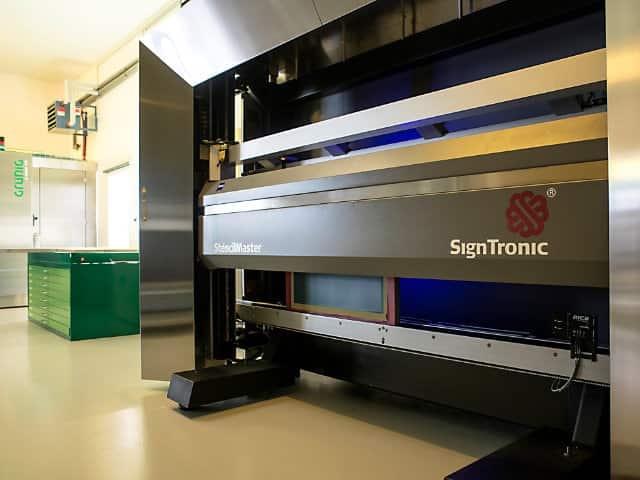

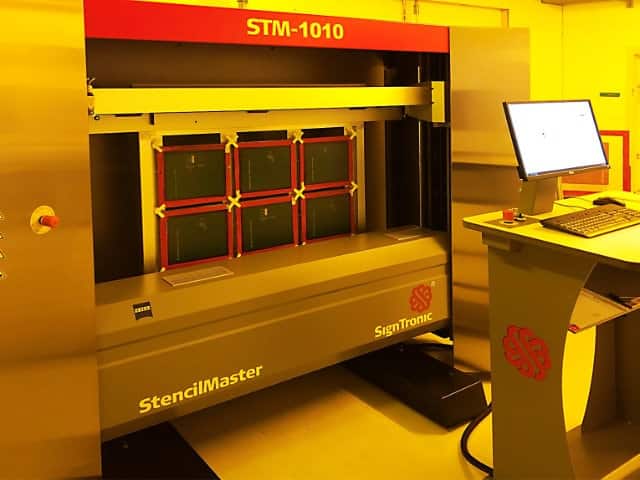

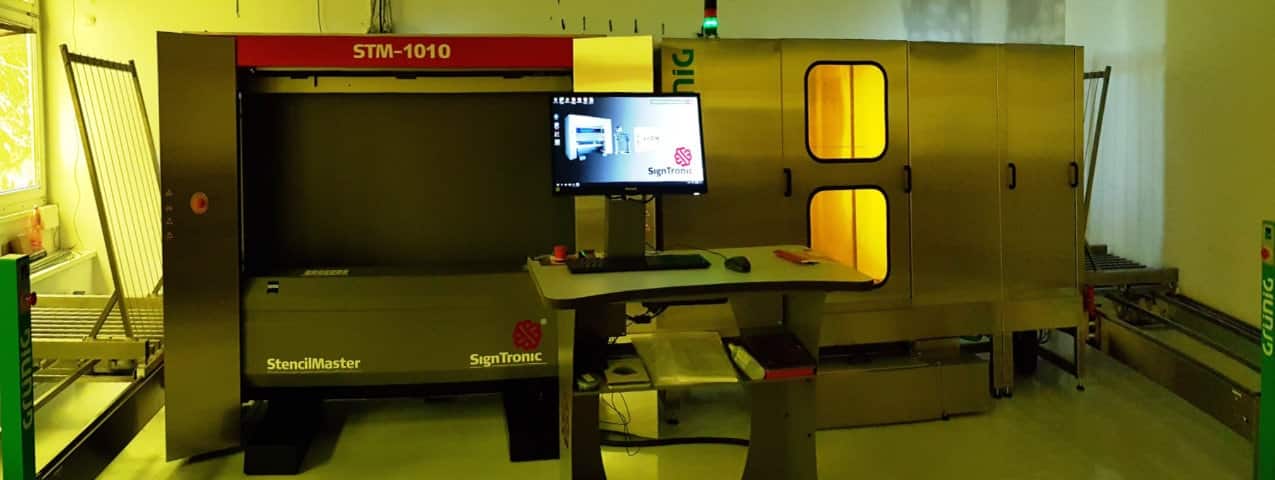

STM-D Series
Modular CtS concept for large frame formats – expandable up to full IN-LINE integration.
1 / 18
Description
- Max. screen format (H x W): from 1200 x 1400 up to 3800 x 4600 mm ( 9 standard sizes)
- Max. exposure format (H x W): from 1000 x 1000 mm up to 3600 x 4100 mm ( 9 standard sizes)
- MODULAR CtS CONCEPT / Generation 4 Technology
- Exposure speed: up to 650 mm/sec.
- High-quality exposure head with a guaranteed resolution of 1270 dpi
- UV light sources based on the MODULAR CtS CONCEPT: LED_Q4, CPL lamp or LED DUO guarantee perfect exposure for almost all meshes and emulsions.
- One hundred percent precision for the image positioning on the screen, thanks to laser recording

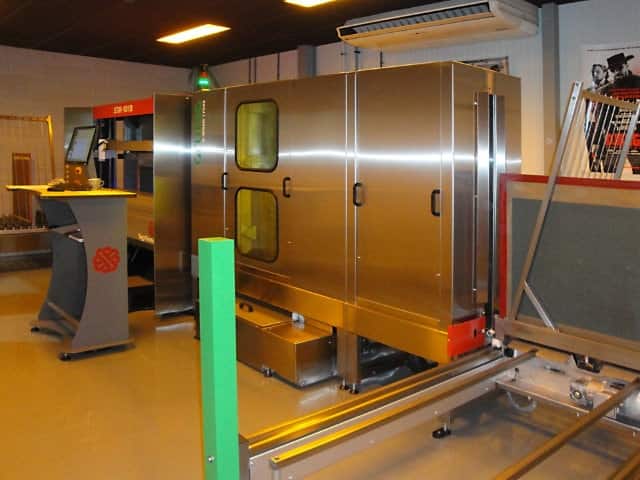

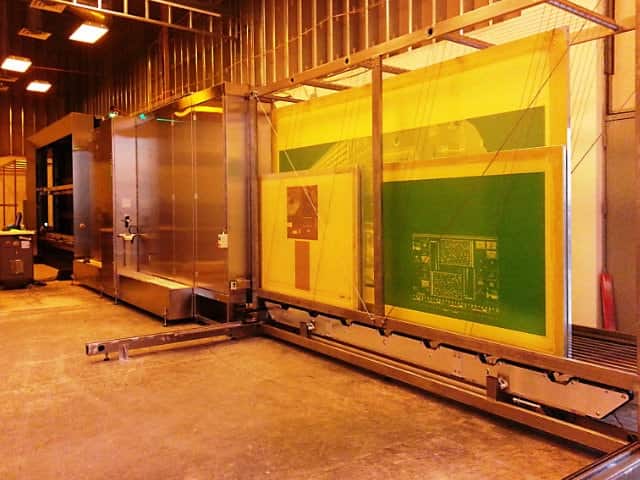

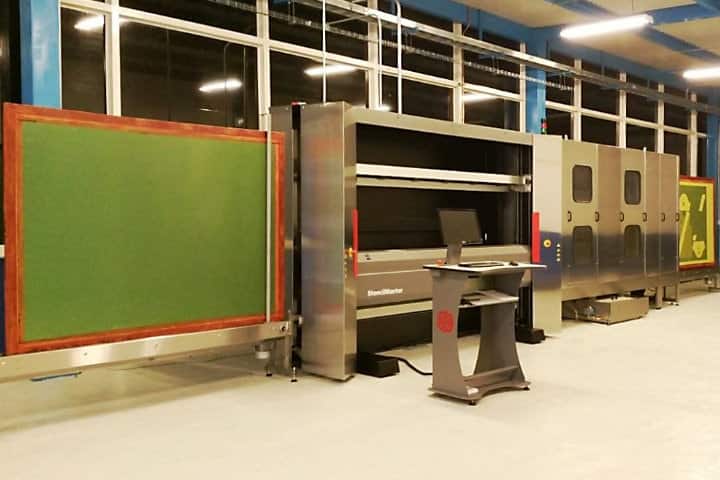

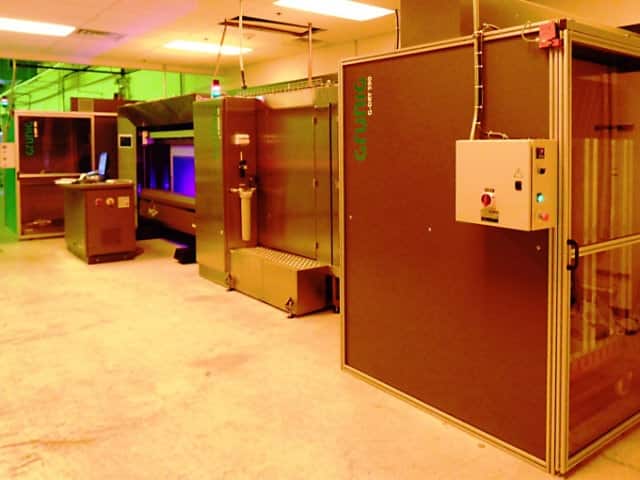

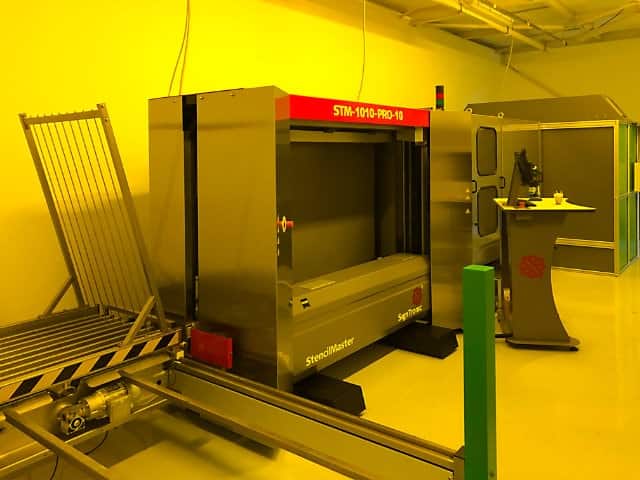

- Designed for future upgrading from a stand-alone CtS exposure system into a fully automated IN-LINE overall (modular) system
- Rugged and high-quality construction (modular)
