CtS Exposure

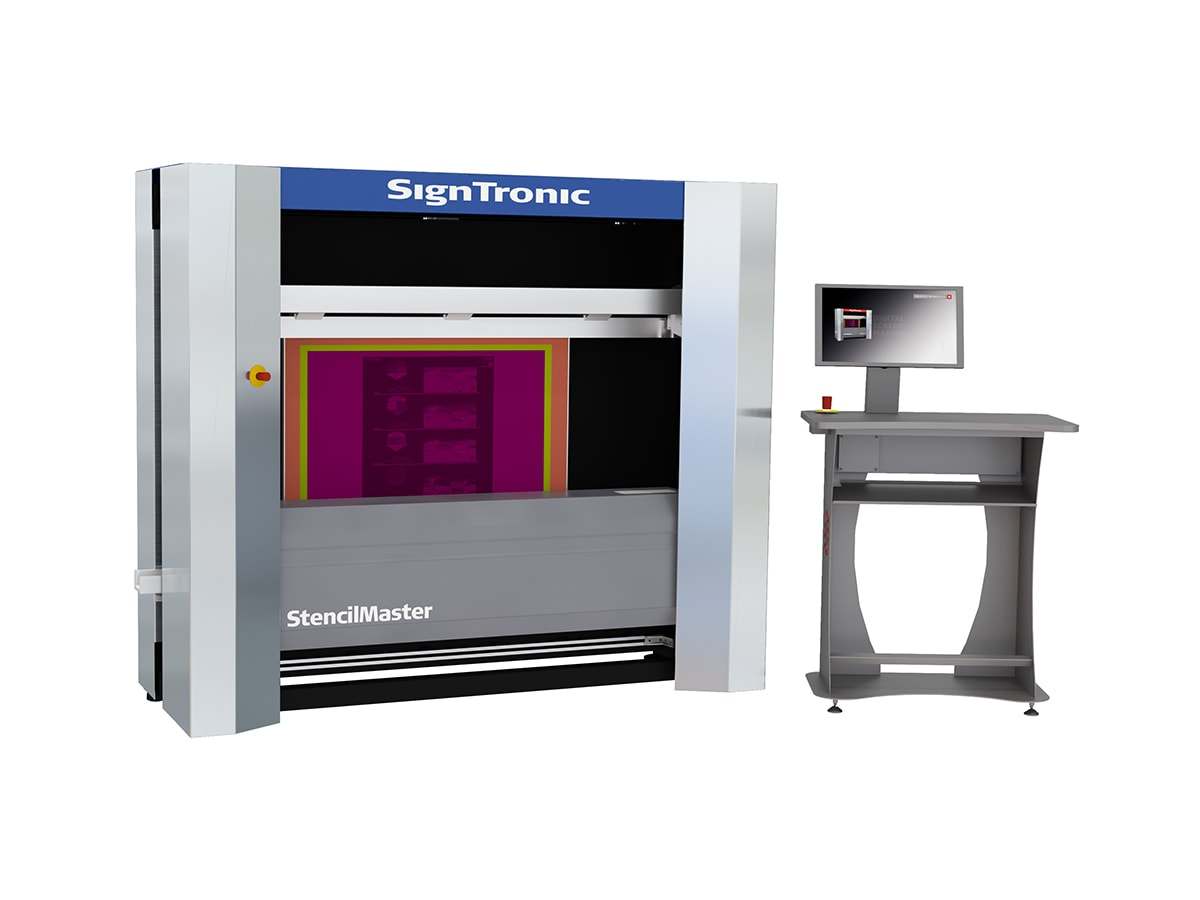

STM-TEX-SERIES

Name: STM-TEX-SERIES
Brand: Grünig-SignTronic

CtS systems for textile applications in multiple machine sizes and formats.
















1 / 15

Description

Max. screen format (H x W): 1200 x 1250 mm (S) / 1200 x 1600 mm (L) / 1500 x 2000 mm (XL)
Max. exposure format (H x W): 1050 x 1040 mm (S) / 1050 x 1600 mm (L) / 1350 x 1600 mm (XL)
MODULAR CtS CONCEPT / Generation 4 Technology
Exposure speed: up to 650 mm/sec.
High-quality exposure head with a guaranteed resolution of 1270 dpi or 1609 dpi (HR1)
UV light sources based on the MODULAR CtS CONCEPT: LED_Q4, CPL lamp or LED DUO guarantee perfect exposure for almost all fabrics and emulsions.
One hundred percent precision for the image positioning on the screen, thanks to laser recording

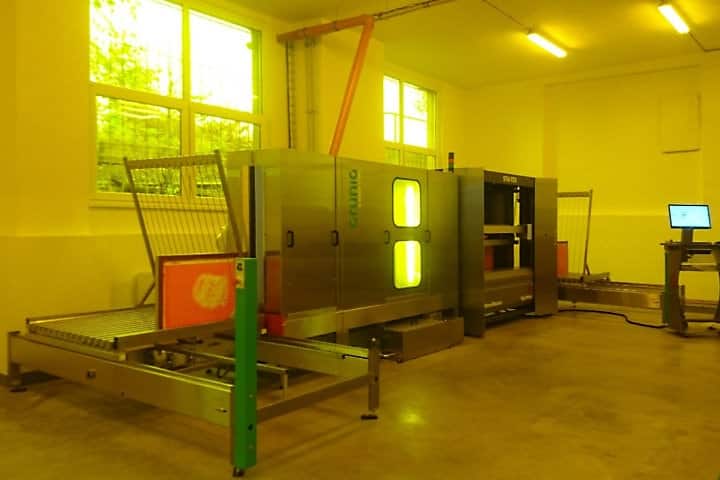

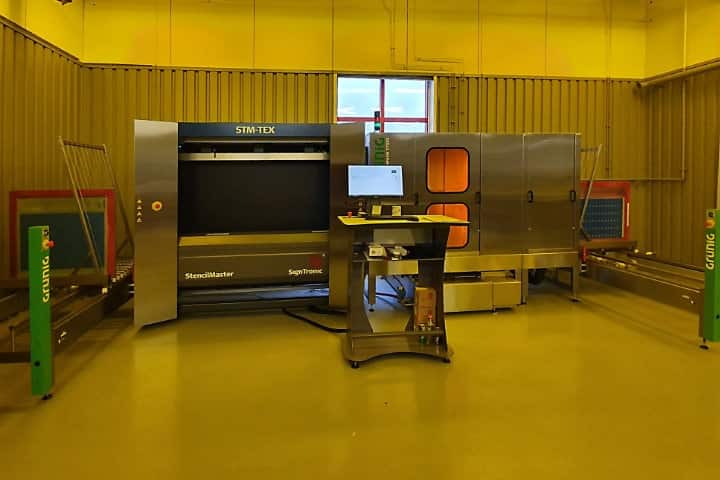

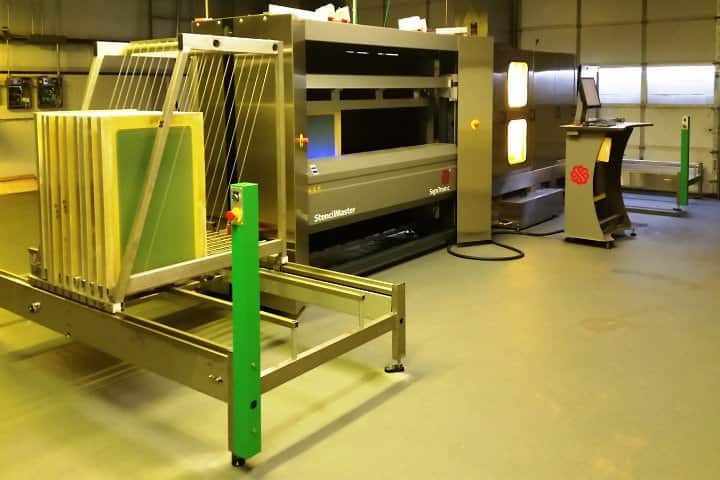

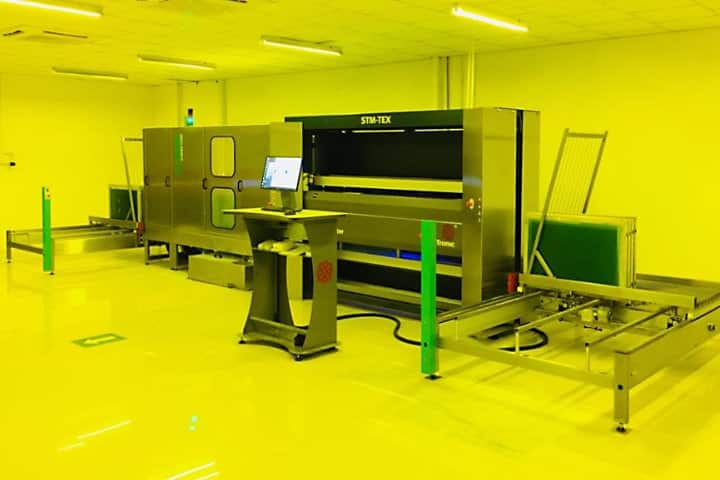

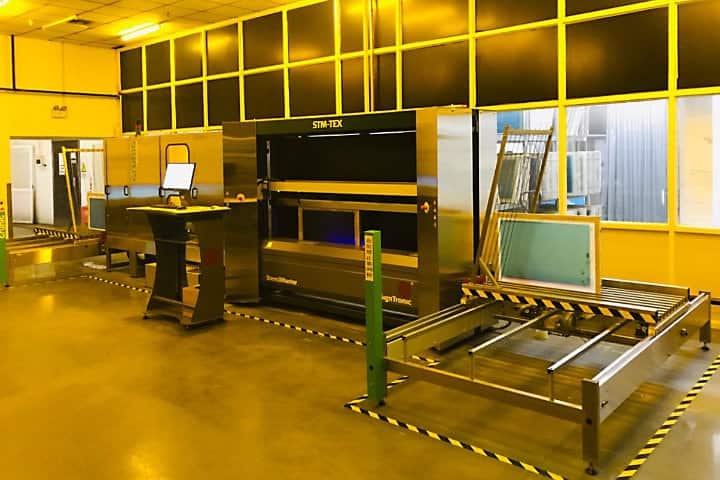

Designed for future upgrading from a stand-alone CtS exposure system into a fully automated IN-LINE overall (modular) system
Rugged and high-quality construction
