CtS Exposure

STM-XL

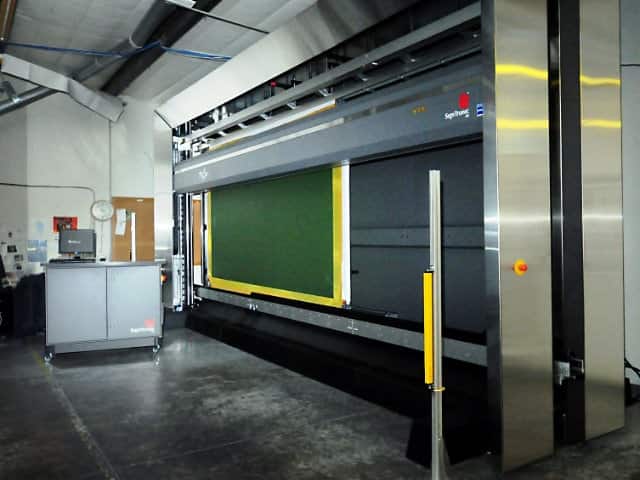

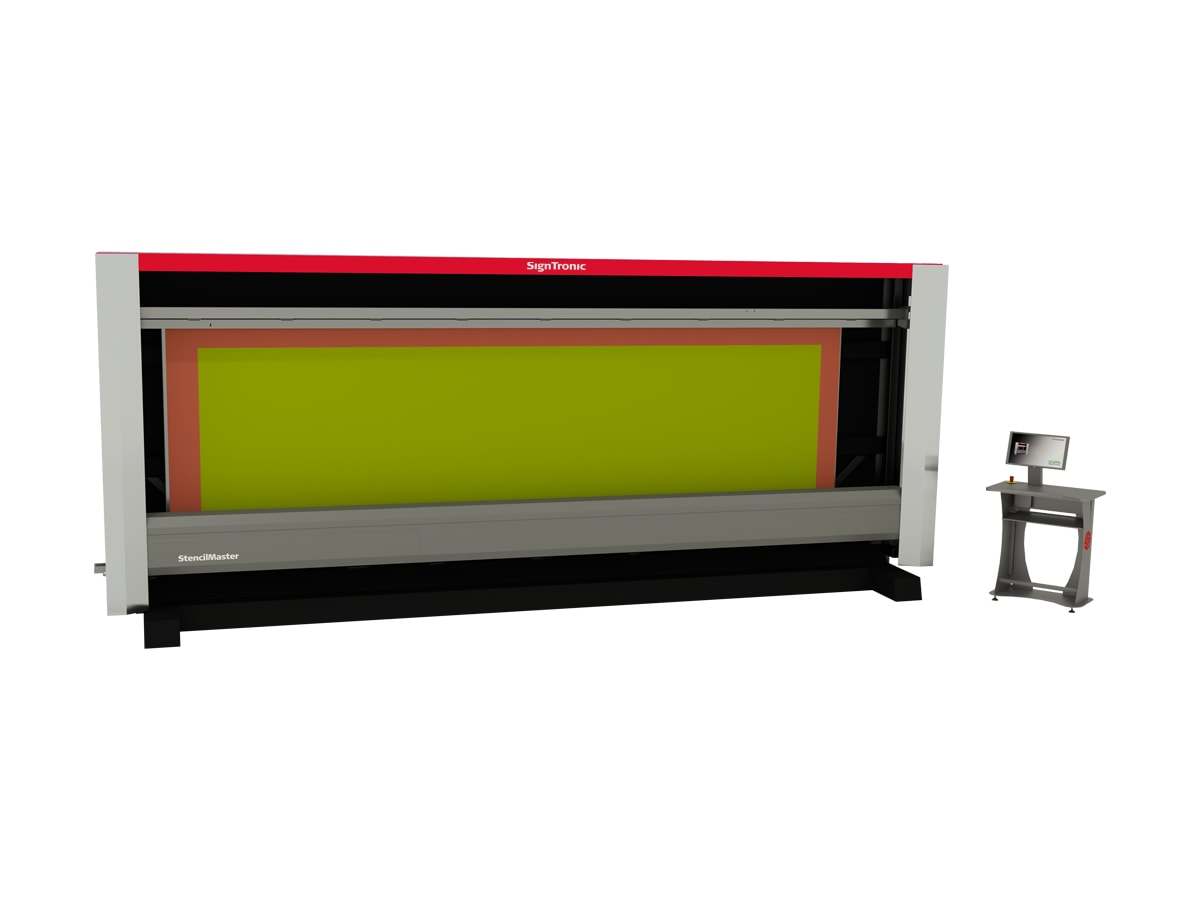

Large-format CtS system for very large frames in landscape or portrait configuration.


1 / 5

Description

Max. screen format LANDSCAPE: Up to 2800 x 7300 mm (height x width)
Max. exposure format LANDSCAPE: Up to 2600 x 6800 mm (height x width)

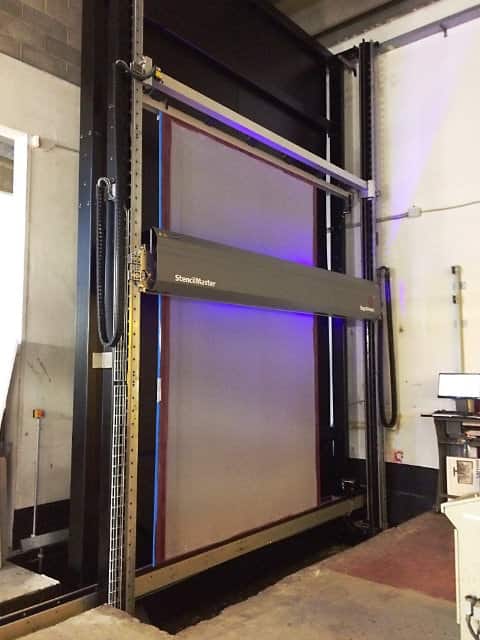

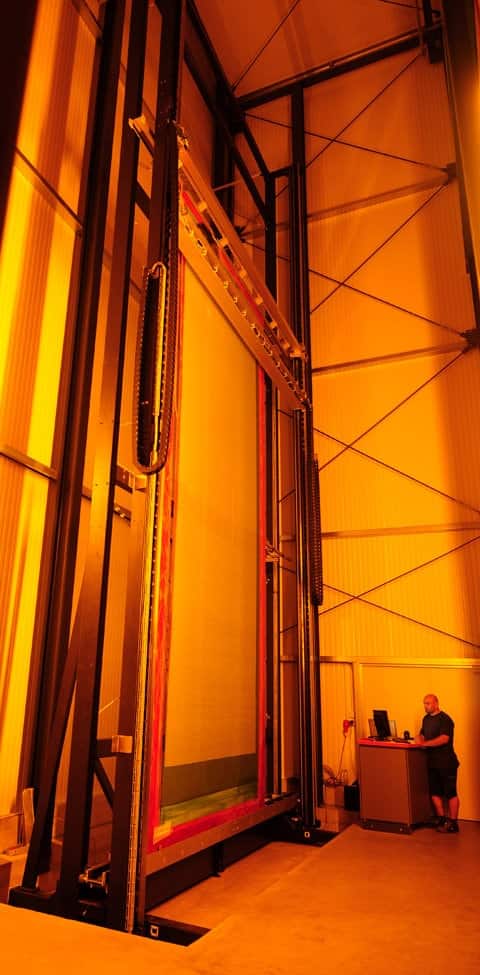

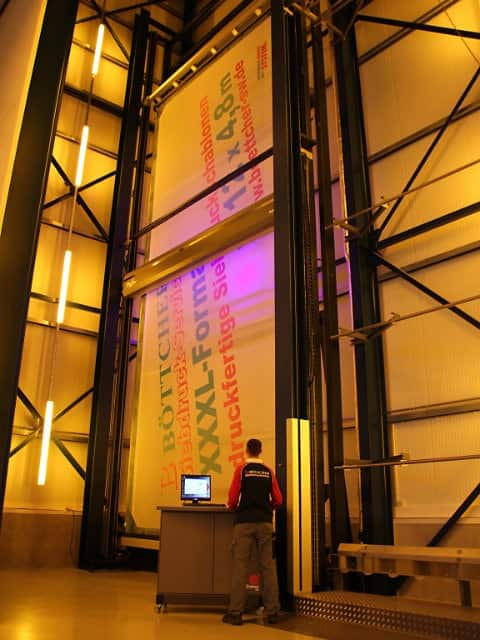

Max. screen format PORTRAIT: Up to 12 x 4.6 m (height x width)
Max. exposure format PORTRAIT: Up to 10 x 4.1 m (height x width)
MODULAR CtS CONCEPT / Generation 4 Technology
High-quality exposure head with a guaranteed resolution of 1270 dpi
UV light sources based on the MODULAR CtS CONCEPT: LED_Q4, CPL lamp or LED DUO guarantee perfect exposure for almost all meshes and emulsions.
One hundred percent precision for the image positioning on the screen, thanks to laser recording
Rugged and high-quality construction, designed for large-size formats XL
Special solutions for loading and unloading of large-size formats
