Stretching

G-STRETCH 210

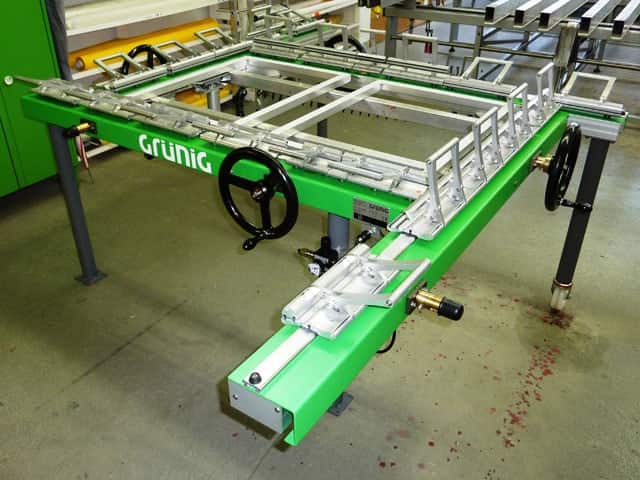

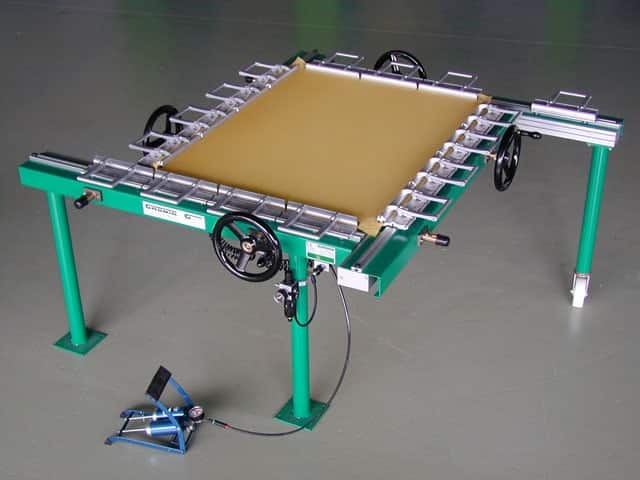

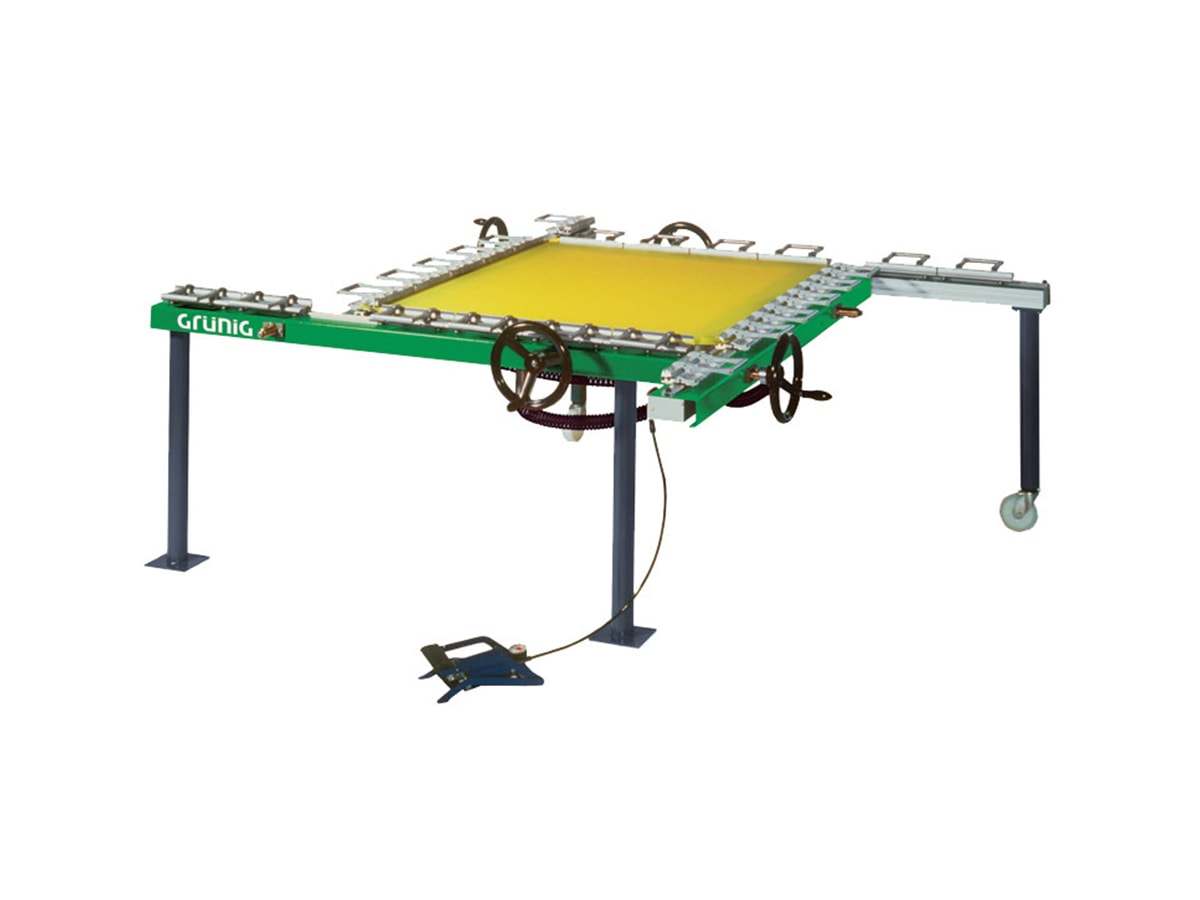

Mechanical stretching system.








1 / 7

Description

Maximum frame format 3000 x 3000 mm / 118 x 118 inch

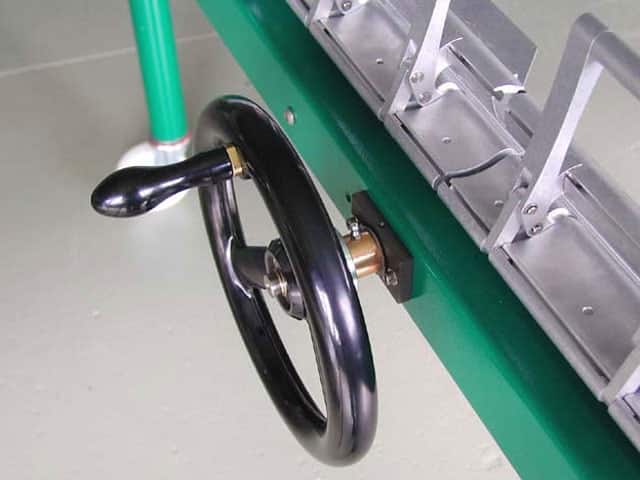

Instant adjustment of the machine size
Optimum handling and highest precision

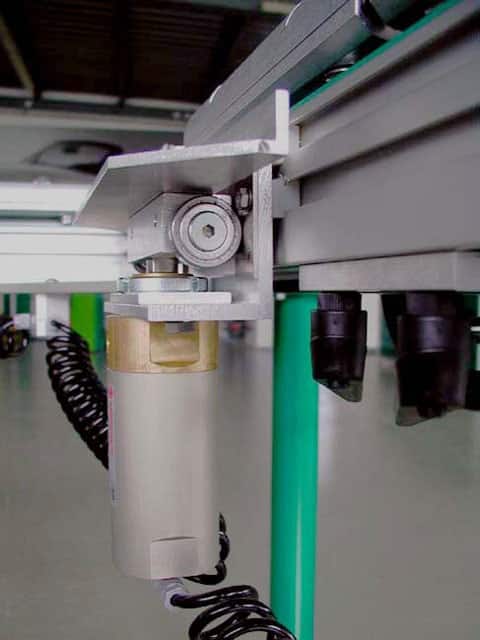

Automatic pre-bowing of the screen frames
Locking function for pre-bowing of screen frames
No contact between frame and mesh during stretching process

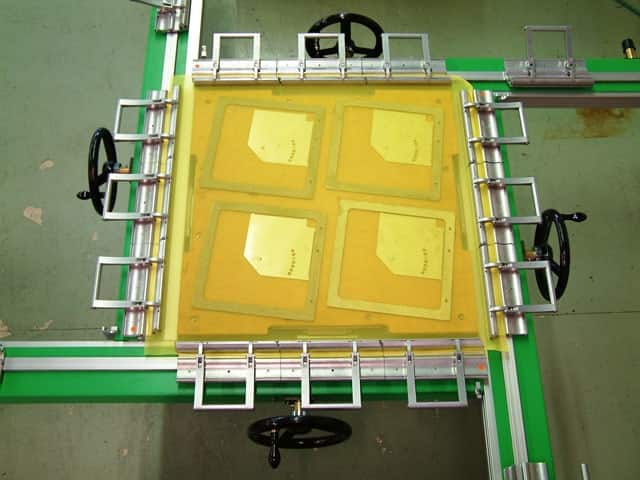

A supporting board allows to stretch many frames at the same time

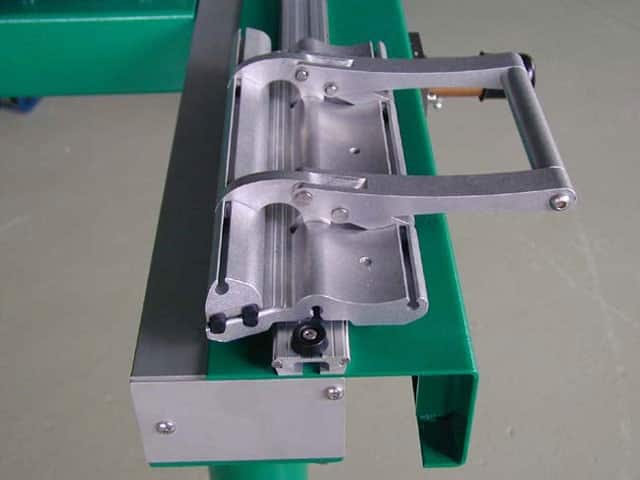

DUPLEX clamps sliding in V2A guideways
