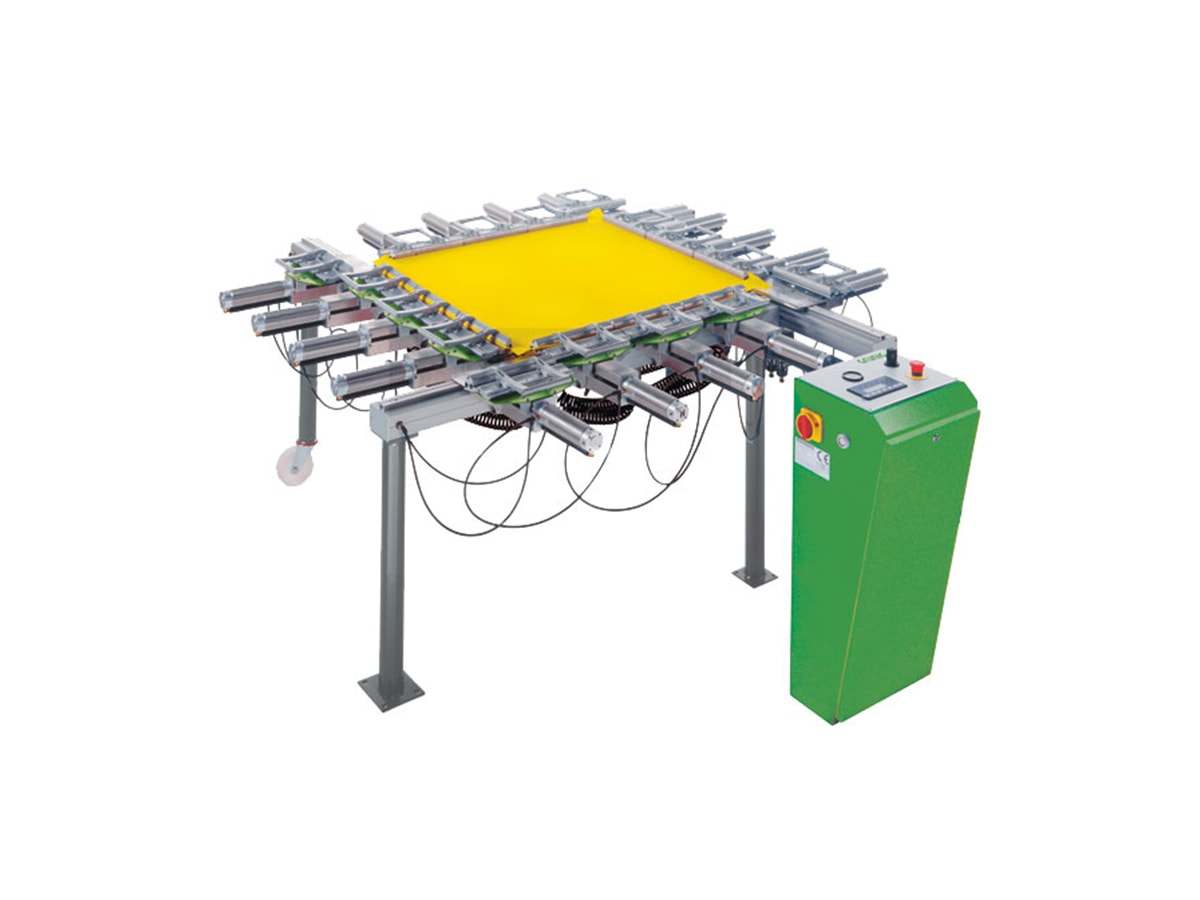

G-STRETCH 215

Pneumatic stretching system.








1 / 8

Description

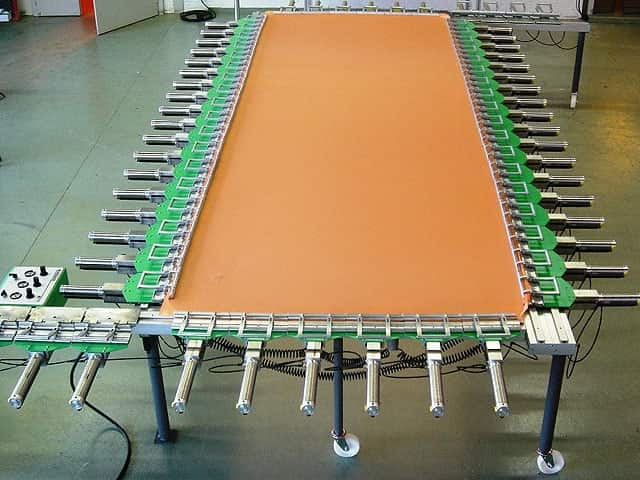

Maximum frame format 3000 x 3000 mm / 118 x 118 inch

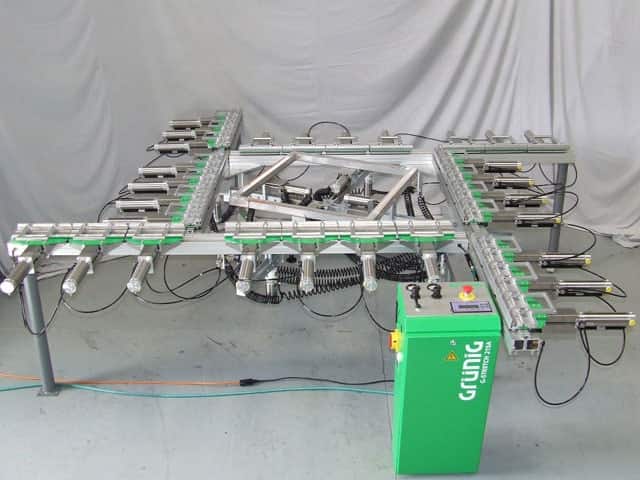

Instant adjustment of the machine size

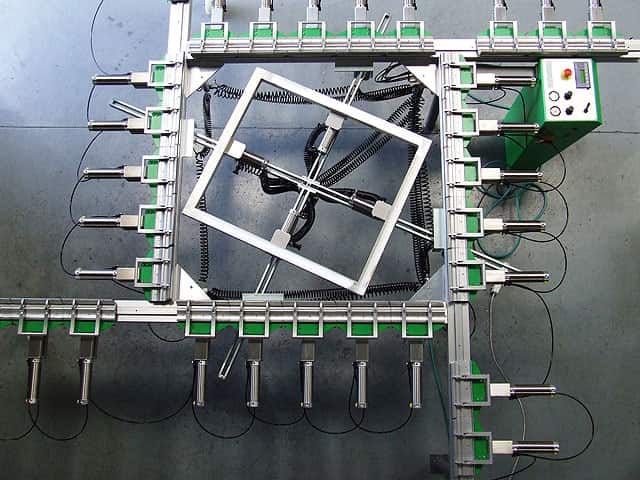

Automatic pre-bowing of the screen frames

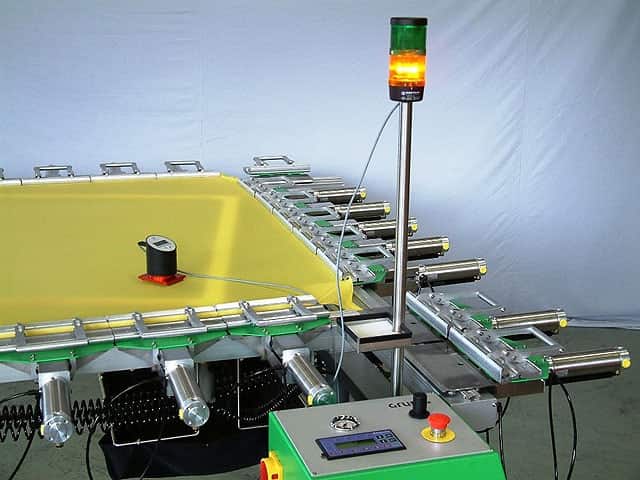

Pneumatic two-circuit control panel
No contact between frame and mesh during stretching process
Pneumatic stretching with highest precision/reproducibility

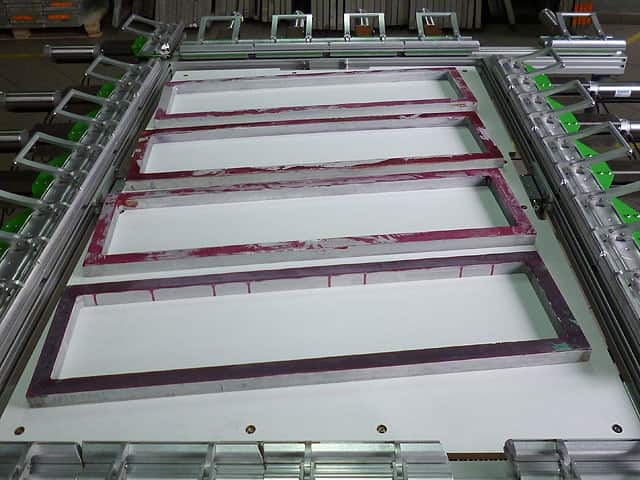

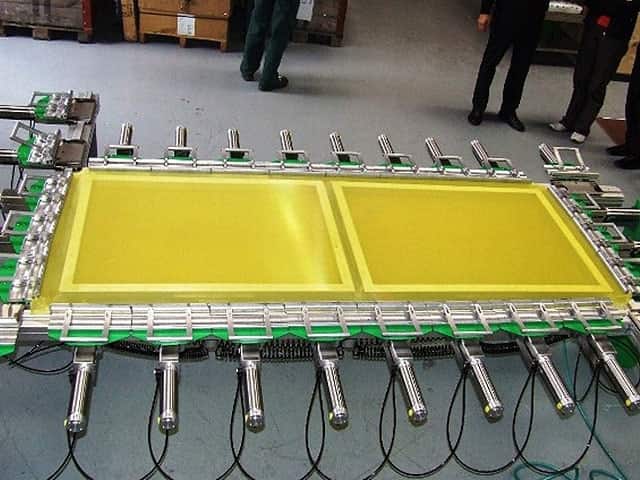

A supporting board allows to stretch many frames at the same time
DUPLEX clamps sliding in V2A guideways
Option: Automatic stretching system up to 50 programs
