Stretching

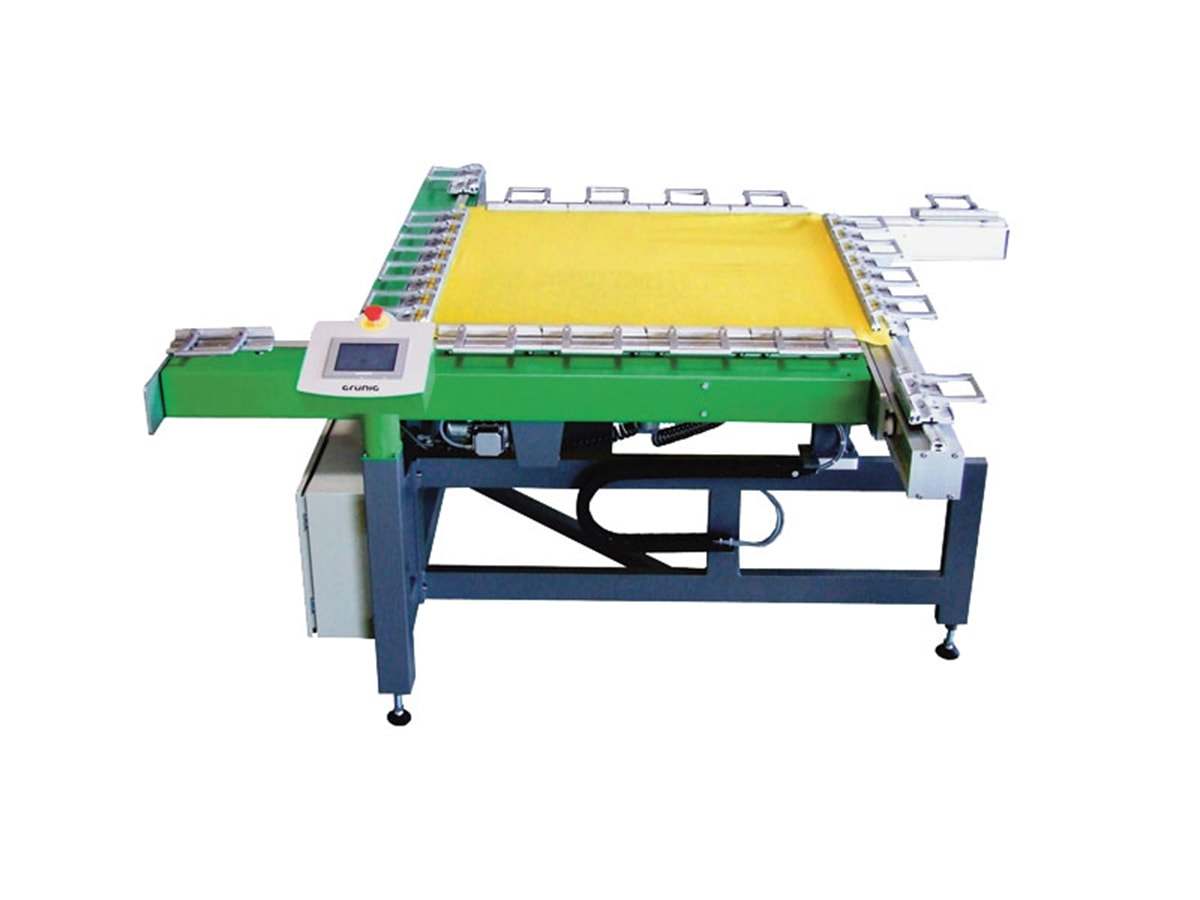

G-STRETCH 270

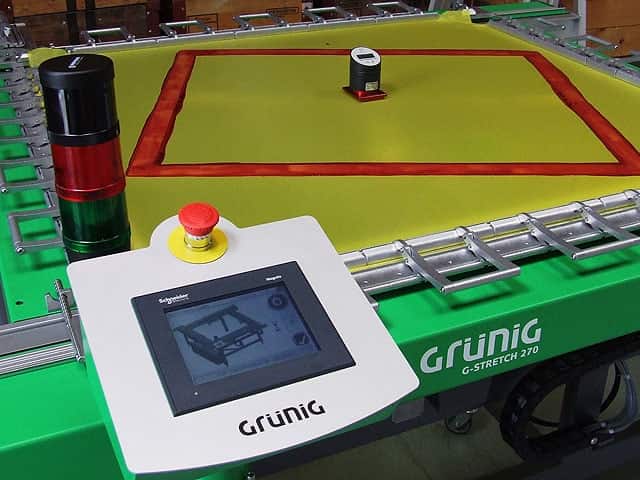

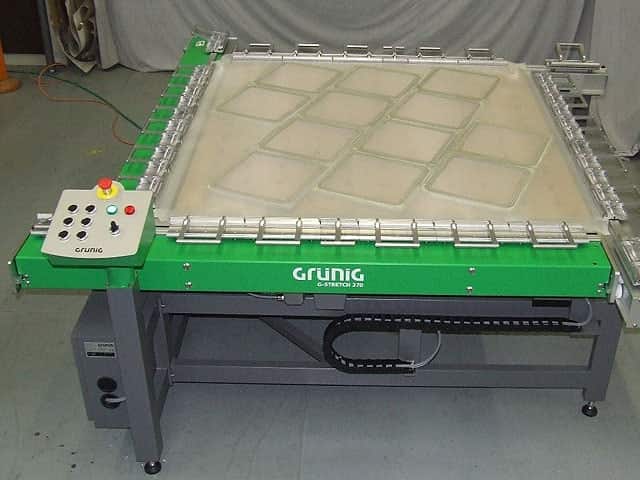

Electromechanical stretching system.











1 / 11

Description

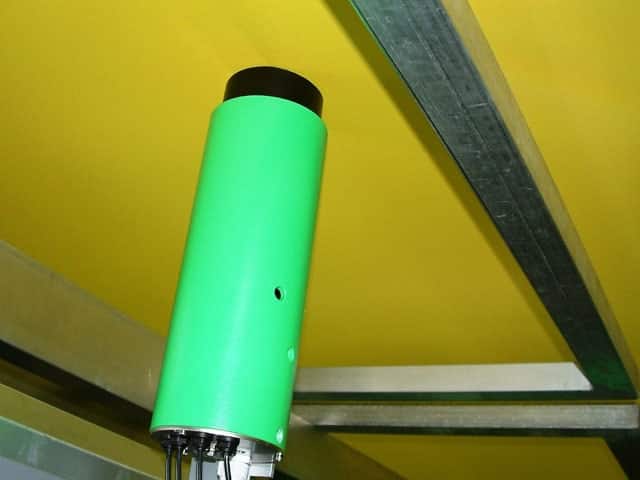

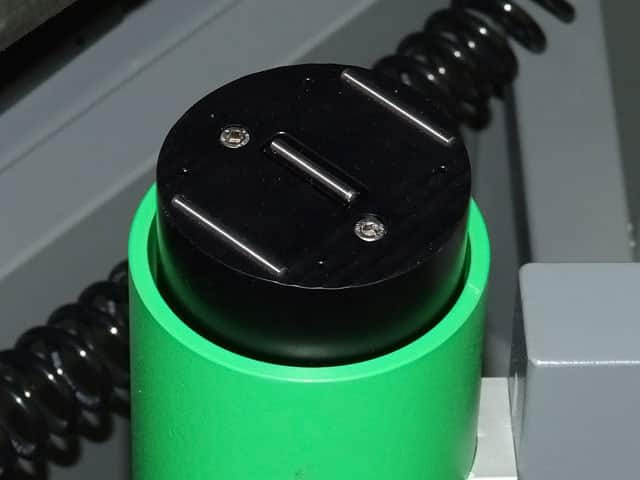

Automatic stretching mechanism operating with the G-CHECK 2 measuring instrument from the lower mesh side
Telescopic and progressively adjustable size adjustment

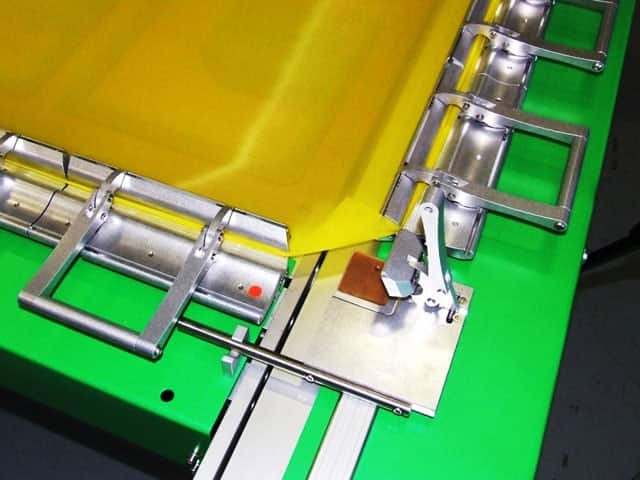

Stretching in true alignment with the thread, without any mesh distortion
Optimal handling and highest degree of precision

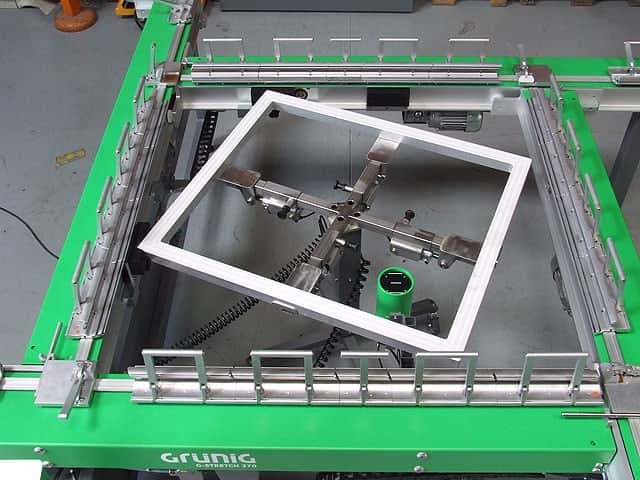

Automatic frame pre-bowing
No contact between the mesh and the frame during stretching

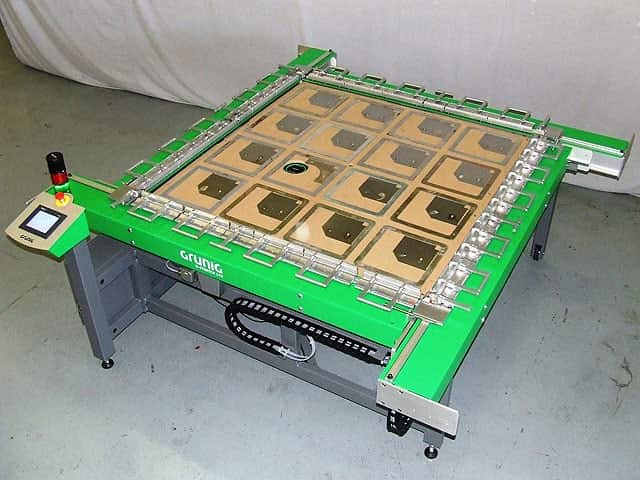

Option: Multiple handling of small frames with support table
