Stretching

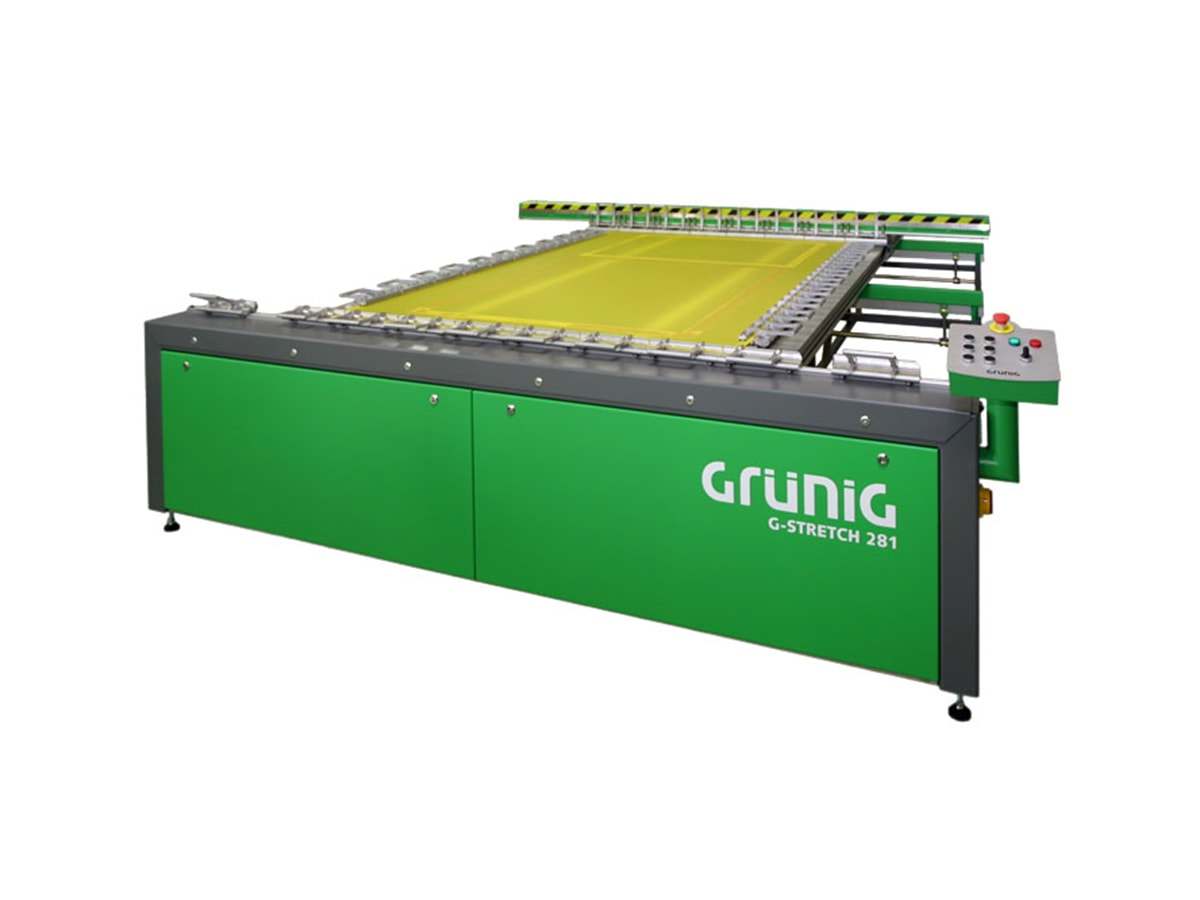

G-STRETCH 281

Large-format stretching system for maximum precision in XL formats.










1 / 9

Description

For maximum stretching surface 4000 x 10000 mm / 157 x 394 inch
High yield with a minimum of mesh consumption

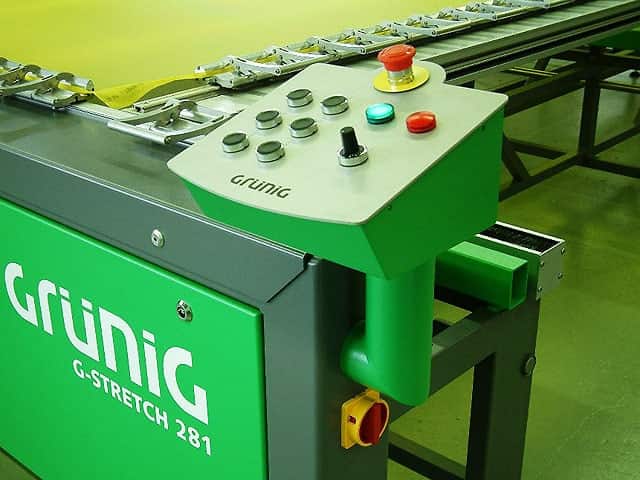

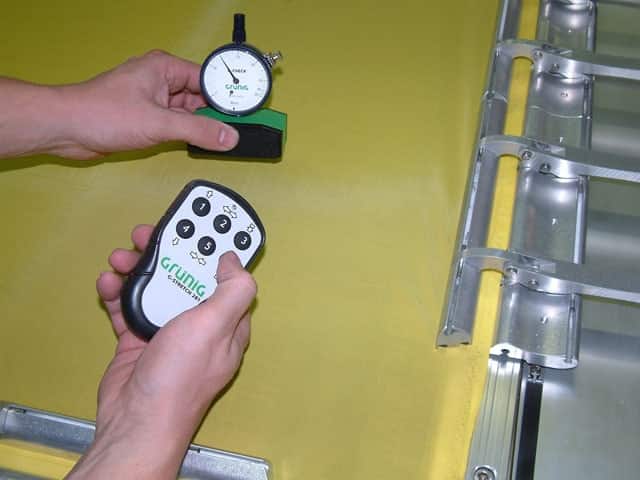

Remote control for all the stretching functions
Adjustable stretching speeds for warp and weft directions

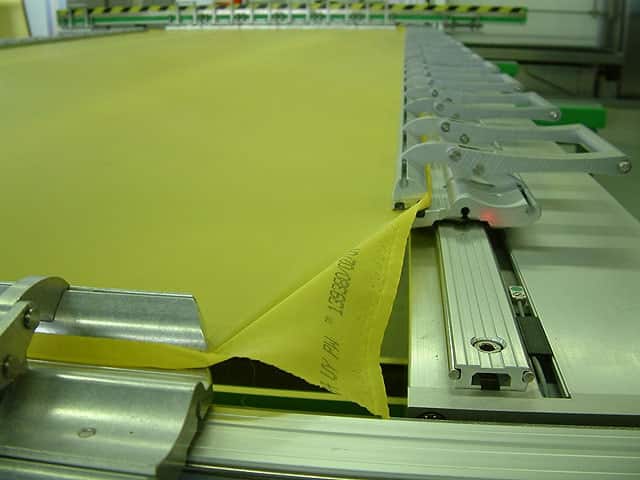

No contact between frame and mesh during stretching process
Easy setting of the desired stretching angle

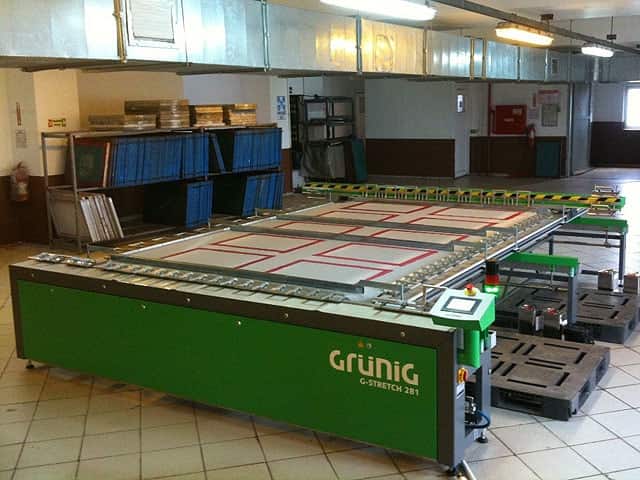

Simultaneous handling of several screen frames

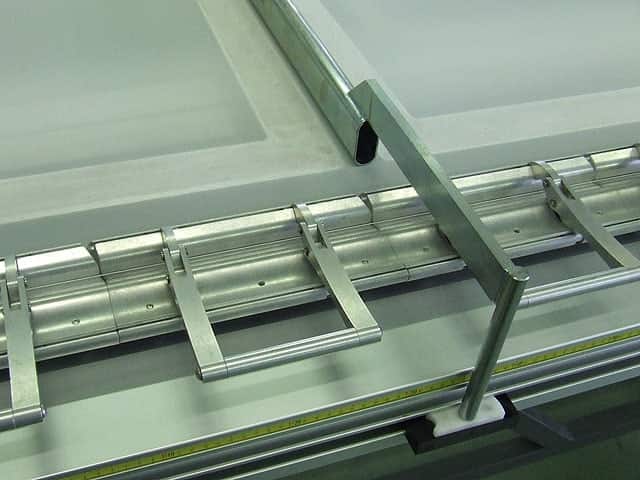

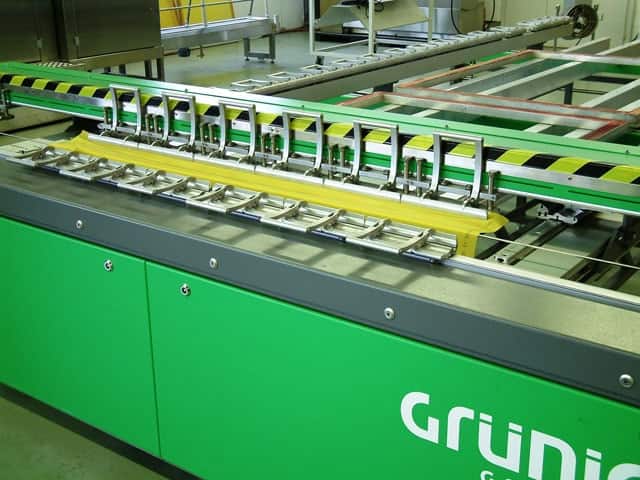

DUPLEX clamps sliding in V2A guideways

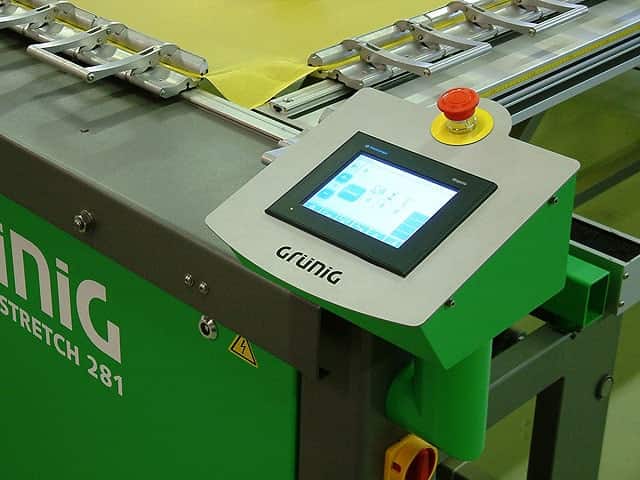

Option: Automatic stretching system via Touch-Screen terminal
